PEXUSB3S3GE | StarTech.com 3-Port PCI Express USB 3.0 Card + Gigabit Ethernet

Ports & interfaces
Internal	Yes
USB version	3.2 Gen 1 (3.1 Gen 1)
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	3
PCI version	2.0
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
PCI Card form factor	Full-height (low-profile)
Bandwidth
Maximum data transfer rate	5000 Mbit/s
Full duplex	Yes
Network
Chipset	Renesas / NEC -  ÂµPD720201, Realtek - RTL8153
VLAN tagging	Yes
Jumbo frames	9000
Maximum data transfer rate	5000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Full duplex	Yes
Auto-negotiation	Yes
Flow control support	Yes
Design
Internal	Yes
Product colour	Metallic, Red
Chipset	Renesas / NEC -  ÂµPD720201, Realtek - RTL8153
Certification	CE, FCC
PCI Card form factor	Full-height (low-profile)
Mean time between failures (MTBF)	1920042 h
LED indicators	Activity, Link
System requirements
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	5 - 50  Â°C
Storage temperature (T-T)	-25 - 70  Â°C
Operating relative humidity (H-H)	20 - 80%
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Width	18 mm
Depth	77 mm
Height	120 mm
Weight	60 g
Package width	144 mm
Package depth	176 mm
Package height	33 mm
Package weight	150 g
Packaging data
Drivers included	Yes
Package width	144 mm
Package depth	176 mm
Package height	33 mm
Package weight	150 g
Quantity	1
Mounting brackets included	Yes
Manual	Yes
Packaging content
Mounting brackets included	Yes
Manual	Yes
Drivers included	Yes
Quantity	1
Performance
USB data transfer rates	5000 Mbit/s
UASP support	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Mean time between failures (MTBF)	1920042 h
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Auto-negotiation	Yes
Technical details
Harmonized System (HS) code	85176990
Sustainability certificates	RoHS
Certificates
Certification	CE, FCC
Other features
Chipset	Renesas / NEC -  ÂµPD720201, Realtek - RTL8153
Manual	Yes
USB data transfer rates	5000 Mbit/s
UASP support	Yes
Jumbo frames	9000
Flow control support	Yes
Harmonized System (HS) code	85176990

---

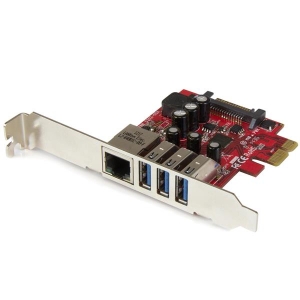

This PCIe USB 3.0 card couples your peripheral and network connections into a single, scalable solution. By combining three USB 3.0 ports and one RJ45 port onto a single card, you only need a single PCIe slot for installation, which lets you free up space for other add-ons or upgrades and get more out of your desktop or server.
Combo-card convenience and cost-savings If you have separate cards for your USB and network connections, this versatile card overcomes the aggravation of running out of PCIe slots while helping to reduce clutter inside your PC. This dual-purpose card is perfect for building or upgrading your computer. It helps you save money by avoiding the additional costs of purchasing separate USB 3.0 and Gigabit Ethernet adapters.
Flexible install options and legacy device support You can rest assured this card will fit in your small form-factor system, if needed. It features a dual-profile design that makes it easy to install in either standard or low-profile cases. The combo card makes it easy to connect peripherals such as your external hard drives or mobile devices. Plus, it’s backward compatible with USB 2.0 and 1.x, so you won’t have to replace all of your existing USB devices.
Gigabit connectivity and network management Functioning as a network adapter, the card delivers wired network access in locations where Wi-Fi Â® is unavailable or unreliable. Support for advanced features such as jumbo frames and VLAN tagging means you can optimize network traffic as needed.
Effective USB 3.0 performance enhanced by UASP This high-performance SuperSpeed USB 3.0 adapter card supports data transfer rates up to 5 Gbps and is enhanced with UASP support, which can perform ~70% faster read speed and 40% faster write speed over traditional USB 3.0, when paired with a UASP-enabled enclosure. The PEXUSB3S3GE is backed by a StarTech.com 2-year warranty and free lifetime technical support.
