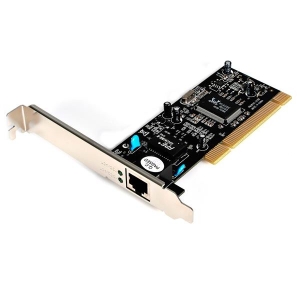

ST1000BT32 | StarTech.com 1 Port PCI 10/100/1000 32 Bit Gigabit Ethernet Network

Ports & interfaces
Internal	Yes
PCI version	2.2
Connectivity technology	Wired
Host interface	PCI
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Full duplex	Yes
Network
Chipset	Realtek - RTL8110SC
VLAN tagging	Yes
Maximum data transfer rate	1000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.11u, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Supported network protocols	CSMA/CD
Full duplex	Yes
Design
Internal	Yes
Chipset	Realtek - RTL8110SC
Certification	CE, FCC, REACH
Mean time between failures (MTBF)	36000 h
LED indicators	10/100/1000 Mbits/sec Link/Activity
Component for	PC
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows ME, Windows NT, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.4 Tiger
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 55  Â°C
Operating relative humidity (H-H)	10 - 95%
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Width	20 mm
Depth	123 mm
Height	63 mm
Weight	53 g
Package width	170 mm
Package depth	143 mm
Package height	30 mm
Package weight	142 g
Protocols
Supported network protocols	CSMA/CD
Packaging data
Low-profile bracket	Yes
Drivers included	Yes
Package width	170 mm
Package depth	143 mm
Package height	30 mm
Package weight	142 g
Manual	Yes
Packaging content
Manual	Yes
Low-profile bracket	Yes
Drivers included	Yes
Performance
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Mean time between failures (MTBF)	36000 h
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows ME, Windows NT, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.4 Tiger
Linux operating systems supported	Yes
Technical details
Harmonized System (HS) code	85176990
Sustainability certificates	RoHS
Certificates
Certification	CE, FCC, REACH
Other features
Chipset	Realtek - RTL8110SC
Manual	Yes
Harmonized System (HS) code	85176990

---

Add a 10/100/1000Mbps Ethernet port to any PC through a PCI slot

This PCI-based 10/100/1000 Mbps Gigabit Ethernet Network Adapter Card provides a simple connection to a Gigabit Ethernet network, and is fully compatible with IEEE 802.3, 802.3u, 802.3ab and 802.3x standards.

Suitable for any PCI-enabled client, server or workstation, the Gigabit Ethernet Network Adapter Card supports high performance dual channel networking and maximum data transfer speeds of 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.

Compatible with a broad range of operating systems, including Linux, Windows 10, 8/8.1, 98SE, ME, 2000, XP, XP-64bit, Vista, Vista-64bit, 7, 7-64bit as well as Mac OS 10.4, this high quality PCI Gigabit NIC includes an optional low profile bracket that makes it easy to install the card in a small form factor/low profile computer case/server.

The StarTech.com Advantage

- Add feature rich Gigabit networking through a PCI slot, suitable for a desktop, workstation or sever use
- Dual profile design to fit into Full or Low Profile/small form factor (SFF) systems
- Backed by a StarTech.com lifetime warranty and free lifetime technical support
