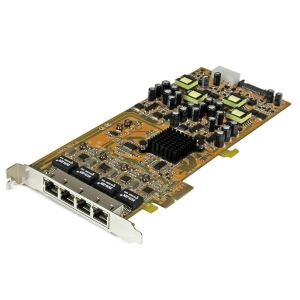

ST4000PEXPSE | StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card

Ports & interfaces
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA power connectors	1
Internal	Yes
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	4
PCI Card form factor	Full-height
Bandwidth
Maximum data transfer rate	2000 Mbit/s
Buffer size	48 KB
Full duplex	Yes
Network
Chipset	RTL8111E
Jumbo frames	9000
Maximum data transfer rate	2000 Mbit/s
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000BaseT(X)
Networking standards	IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Full duplex	Yes
Design
Internal	Yes
Chipset	RTL8111E
Certification	CE, FCC, REACH, TAA
PCI Card form factor	Full-height
LED indicators	Link, PoE
Power
Output voltage	48 V
System requirements
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 55  Â°C
Storage temperature (T-T)	-40 - 75  Â°C
Operating relative humidity (H-H)	10 - 90%
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Width	18 mm
Depth	243 mm
Height	120 mm
Weight	102 g
Package width	188 mm
Package depth	296 mm
Package height	66 mm
Package weight	428 g
Packaging data
Drivers included	Yes
Package width	188 mm
Package depth	296 mm
Package height	66 mm
Package weight	428 g
Manual	Yes
Packaging content
Manual	Yes
Drivers included	Yes
Performance
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Technical details
Harmonized System (HS) code	85176990
Sustainability certificates	RoHS
Certificates
Certification	CE, FCC, REACH, TAA
Other features
Chipset	RTL8111E
Manual	Yes
Jumbo frames	9000
Peripheral (Molex) power connectors (4-pin)	1
Number of SATA power connectors	1
Buffer size	48 KB
Harmonized System (HS) code	85176990

---

Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.

The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.

Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
