HOME / Back -> Networking -> Power Over Ethernet (PoE) -> Cambium Networks

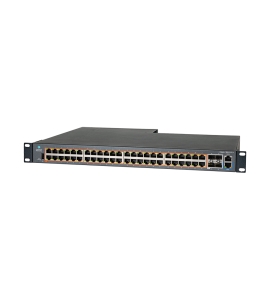

Cambium Networks EX2052R-P Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black, 176 Gbps, 48 x 10/100/1000 Ports, 4 SFP+, PoE, 1U, black

IMG 1 of 1
Our Price:
$2,950.65
RRP:
$3,220.33
You Save:
$269.68
or quickly purchase this product
Backorder
Part Number:
523973
(?) Brand:
Cambium Networks
Manuf No:
MXEX2052GXPA10
Shipping Weight:
4 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
MXEX2052GXPA10, MXEX2052GxPA10, CBS2052RP, 5704174864776

Cambium Networks EX2052R-P Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black

Manufacturer: Cambium Networks
Category: Networking
Sub-Category: Network Switches
SKU: MXEX2052GXPA10
EAN: 5704174864776

Description

cnMatrix Switch EX2052R-P 176 Gbps throughputs, 48 10/100/1000 Ports, 120 Forwarding Rate in Mpps (64 Byte Packets), 4 SFP+ Uplink ports

Specifications

Management features
Reset buttonYes
Multicast supportYes
Switch typeManaged
Quality of Service (QoS) supportYes
Network
IGMP snoopingYes
IGMP proxyYes
Networking standardsIEEE 802.3af, IEEE 802.3at
Number of VLANs4000
Broadcast storm controlYes
Auto MDI/MDI-XYes
10G supportNo
Policy-based routingYes
Virtual LAN features
Number of VLANs4000
Data transmission
Number of VLANs4000
Jumbo frames9000
MAC address table16000 entries
Jumbo frames supportYes
Forwarding rate120 Mpps
Throughput176 Gbit/s
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity4
Security
BPDU filtering/protectionYes
SSH/SSL supportYes
IGMP snoopingYes
Password protectionYes
IGMP proxyYes
DHCP featuresDHCP client, DHCP relay, DHCP snooping
Multicast features
Multicast supportYes
Design
Reset buttonYes
Rack mountingYes
Product colourBlack
Form factor1U
LED indicatorsActivity, Link, PoE
Number of fans2 fan(s)
Performance
Processor frequency800 MHz
Memory typeDDR-SDRAM
Internal memory512 MB
Flash memory128 MB
Mean time between failures (MTBF)202977 h
Built-in processorYes
Power
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) voltage54 V
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-40 - 70 °C
Weight & dimensions
Width440 mm
Depth350 mm
Height44 mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
