All stock codes associated to this product
4XB7A38185, 5180522, 0889488511464, SVL-4XB7A38185-D, 889488511464
| Performance |
|---|
| Interface | Serial ATA III |
| Component for | Server/workstation |
| SSD capacity | 960 GB |
| Read speed | 540 MB/s |
| Write speed | 70 MB/s |
| NVMe | No |
| Memory type | QLC 3D NAND |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 40 IOPS |
| Random write (4KB) | 1.2 IOPS |
| Read latency | 310 µs |
| Write latency | 530 µs |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Hardware encryption | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Design |
|---|
| SSD form factor | 2.5" |
| Features |
|---|
| Interface | Serial ATA III |
| Component for | Server/workstation |
| SSD capacity | 960 GB |
| Read speed | 540 MB/s |
| Write speed | 70 MB/s |
| NVMe | No |
| Memory type | QLC 3D NAND |
| Data transfer rate | 6 Gbit/s |
| Random read (4KB) | 40 IOPS |
| Random write (4KB) | 1.2 IOPS |
| Read latency | 310 µs |
| Write latency | 530 µs |
| Security algorithms | 256-bit AES |
| S.M.A.R.T. support | Yes |
| Hardware encryption | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Power |
|---|
| Power consumption (write) | 3.9 W |
| Power consumption (read) | 2.8 W |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details |
|---|
| Interface | Serial ATA III |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Weight & dimensions |
|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |

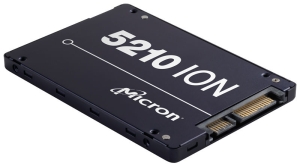

The 5210 Entry SATA QLC solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, and big data. This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions. The 5210 Entry SATA solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, big data, and media streaming.
