All stock codes associated to this product
ET90110SM302, 2061161, 0065030846264
| Network |
|---|
| Fiber optic connector | SC |
| Maximum data transfer rate | 200 Mbit/s |
| Converter input interface | 10Base-T |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet interface type | Fast Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 100Base-FX |
| Auto MDI/MDI-X | Yes |
| Performance |
|---|
| Plug and Play | Yes |
| Wavelength | 1310 nm |
| Maximum transfer distance | 30000 m |
| Fiber mode structure | Single-mode |
| Ports & interfaces |
|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| DC-in jack | Yes |
| Design |
|---|
| Internal | No |
| Product colour | Black |
| Certification | CE, FCC |
| Power |
|---|
| Output voltage | 12 V |
| Output current | 1 A |
| External power adapter | Yes |
| Management features |
|---|
| Plug and Play | Yes |
| Weight & dimensions |
|---|
| Weight | 600 g |
| Package width | 206 mm |
| Package depth | 137 mm |
| Package height | 89 mm |
| Package weight | 766 g |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data |
|---|
| Package width | 206 mm |
| Package depth | 137 mm |
| Package height | 89 mm |
| Package weight | 766 g |
| Packaging content |
|---|
| Manual | Yes |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Certificates |
|---|
| Certification | CE, FCC |
| Other features |
|---|
| Full duplex | Yes |
| Dimensions (WxDxH) | 95 x 160 x 20 mm |
Convert and extend a 10/100 Mbps Ethernet connection up to 18.6 miles/30km over Single Mode SC fiber

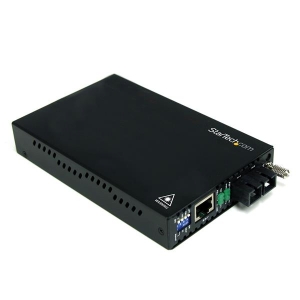

The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for durability in harsh environments
