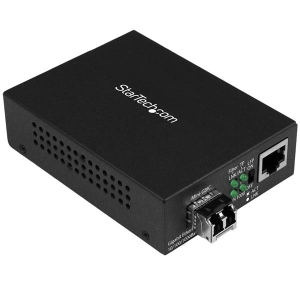

MCM1110MMLC | StarTech.com Gigabit Ethernet Fiber Media Converter - Compact

Network
Fiber optic connector	LC
Jumbo frames support	Yes
Data transfer rate	1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Converter input interface	1000Base-T, 100Base-TX, 10Base-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full
Converter output interface	1000Base-LX, 1000Base-SX
Auto MDI/MDI-X	Yes
Performance
Jumbo frames support	Yes
Wavelength-division multiplexing (WDM)	No
Wavelength	850 nm
Maximum transfer distance	550 m
Fiber mode structure	Multi-mode
Mean time between failures (MTBF)	50000 h
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	LC
DC-in jack	Yes
Design
Internal	No
LED indicators	Activity, Link, Power
Housing material	Steel
Product colour	Black
Certification	CE, FCC, REACH, TAA
Power
Power plug type	Type N
Input voltage	100 - 240 V
Input current	1 A
Output voltage	5 V
Output current	2 A
External power adapter	Yes
Power over Ethernet (PoE)	No
Technical details
Data transfer rate	1000 Mbit/s
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Weight & dimensions
Width	70 mm
Depth	94 mm
Height	26 mm
Weight	201 g
Package width	140 mm
Package depth	284 mm
Package height	68 mm
Package weight	556 g
Operational conditions
Operating temperature (T-T)	0 - 50  Â°C
Storage temperature (T-T)	-10 - 70  Â°C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Package width	140 mm
Package depth	284 mm
Package height	68 mm
Package weight	556 g
Packaging content
Manual	Yes
Certificates
Certification	CE, FCC, REACH, TAA

---

Convert and extend different networks over a Gigabit fiber cable connection up to 550m / 1804ft

This fiber media converter offers an easy, cost-effective way to extend your network over Gigabit fiber. It is equipped with a multimode transceiver which converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful extended networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

Cost-effective extension and dependable performance

The Gigabit Fiber Media Converter provides a cost-effective and dependable solution for shorter range network extensions. It connects an Ethernet network to remote devices over a fiber backbone, with a 550m range on the fiber optic interface. The media converter has a durable metal housing, engineered to deliver long-lasting performance.

Versatile connections for broad compatibility

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

The multimode transceiver is removable, giving you the flexibility to change your transceiver in the future to meet your networking needs.

Easy installation and compact convenience

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option to save space.

The MCM1110MMLC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- 10/100/1000 Mbps RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
- Compact standalone design and wall mounting option for easy and convenient installation
