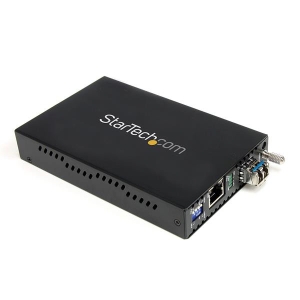

ET1000S40LC2 | StarTech.com 1000 Mbps Gigabit Single Mode Fiber Media Converter

Network
Fiber optic connector	LC
Maximum data transfer rate	2000 Mbit/s
Converter input interface	1000Base-T
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full, Half
Converter output interface	1000Base-LX, 1000Base-SX
Auto MDI/MDI-X	Yes
Performance
Plug and Play	Yes
Wavelength	1310 nm
Maximum transfer distance	40000 m
Fiber mode structure	Single-mode
Mean time between failures (MTBF)	65000 h
Ports & interfaces
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	LC
DC-in jack	Yes
Design
Internal	No
Product colour	Black
Certification	CE, FCC
Power
Output voltage	12 V
Output current	1 A
External power adapter	Yes
Management features
Plug and Play	Yes
Weight & dimensions
Weight	620 g
Package width	205 mm
Package depth	138 mm
Package height	89 mm
Package weight	754 g
Operational conditions
Operating temperature (T-T)	0 - 60  Â°C
Storage temperature (T-T)	-10 - 70  Â°C
Operating relative humidity (H-H)	10 - 90%
Packaging data
Package width	205 mm
Package depth	138 mm
Package height	89 mm
Package weight	754 g
Packaging content
Manual	Yes
Technical details
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC
Other features
Full duplex	Yes
Dimensions (WxDxH)	95 x 160 x 20 mm

---

Convert and extend a Gigabit Ethernet connection up to 24.8 miles/40km over Single Mode LC fiber
The ET1000S40LC2 1000 Mbps Gigabit Single-Mode Fiber Media Converter (LC, 40 km) enables you to extend a Gigabit Ethernet network over single-mode fiber, at distances up to 40km (25 miles).
A cost-effective solution for connecting a Gigabit Ethernet (1000Base-T) network to remote network segments over a (1000Base-LX/SX) fiber backbone, the GbE to SM fiber converter supports full Gigabit speeds for ideal network performance and scalability. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to LC Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.
For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Link loss forwarding, remote monitoring of status ensures maximum up-time
- Provides Ethernet to Fiber conversion as a standalone device, or can be installed into the ETCHS2U 20 slot chassis for added versatility
- Rugged steel casing for added durability in harsh environments
- Cost-effective way to extend/bridge networks using fiber cabling
