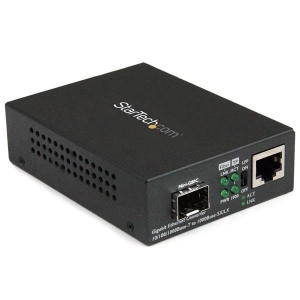

MCM1110SFP | StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP

Network
Fiber optic connector	SFP
Jumbo frames support	Yes
Maximum data transfer rate	1000 Mbit/s
Converter input interface	1000Base-T, 100Base-TX, 10Base-T
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Gigabit Ethernet
Duplex system	Full
Converter output interface	1000Base-LX, 1000Base-SX
Auto MDI/MDI-X	Yes
Performance
Jumbo frames support	Yes
Wavelength-division multiplexing (WDM)	Yes
Fiber mode structure	Multi-mode, Single-mode
Mean time between failures (MTBF)	50000 h
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP
DC-in jack	Yes
Design
Internal	No
LED indicators	Activity, Link, Power
Housing material	Steel
Product colour	Black
Certification	CE, FCC
Power
Power plug type	Type N
Input voltage	100 - 240 V
Input current	1 A
Output voltage	5 V
Output current	2 A
Power consumption (typical)	5 W
External power adapter	Yes
Power over Ethernet (PoE)	No
Weight & dimensions
Width	70 mm
Depth	95 mm
Height	26 mm
Weight	185 g
Package width	284 mm
Package depth	139 mm
Package height	68 mm
Package weight	544 g
Operational conditions
Operating temperature (T-T)	0 - 50  Â°C
Storage temperature (T-T)	-10 - 70  Â°C
Operating relative humidity (H-H)	5 - 95%
Packaging data
Package width	284 mm
Package depth	139 mm
Package height	68 mm
Package weight	544 g
Packaging content
Manual	Yes
Technical details
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC

---

Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice

This fiber media converter offers an easy, cost-effective way to extend your network over fiber, using the SFP of your choice. It converts a copper RJ45 Ethernet connection to Gigabit fiber to extend your network over longer distances or connect workstations to switches. The converter provides a powerful networking solution for campuses, businesses, government facilities, stadiums, or other areas requiring network access.

A cost-effective extension and flexible performance

The Gigabit fiber media converter provides a cost-efficient way to connect your Ethernet network to remote devices over a fiber backbone. It features an open SFP slot that lets you choose the MSA-compliant Gigabit SFP that best suits your fiber connection mode (single / multimode) and distance requirements.

A versatile way to connect different networks

Fully compatible with 10/100/1000Base-T Ethernet networks, the fiber media converter supports auto negotiation to bridge different speed networks and devices to a Gigabit fiber network. It provides versatile connectivity to your existing networks and devices, allowing you to maximize the usage and performance of legacy equipment.

Installation is fast and easy

The unmanaged fiber media converter has a standalone design with simple plug-and-play set-up to ensure fast and easy installation. Compact in size, the converter gives you flexible installation options - including a wall mounting option.

The MCM1110SFP is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Convert between an RJ45 copper Ethernet connection and a fiber optic connection to extend your network cost-effectively
- Gigabit Open SFP slot to customize the network extension distance to your requirements with virtually any MSA-compliant multi or single mode transceiver
- 10/100/1000 Mbps compatible RJ45 port supports auto negotiation to bridge different network speeds and devices to a Gigabit fiber network
