All stock codes associated to this product
MCMGBSCSM10, 4127081, 0065030878241
| Network |
|---|
| Fiber optic connector | SC |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Jumbo frames | 9000 |
| Maximum data transfer rate | 1000 Mbit/s |
| Converter input interface | 10Base-T, 100Base-TX, 1000Base-T |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 100Base-LX |
| Auto MDI/MDI-X | Yes |
| Performance |
|---|
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 50000 h |
| Ports & interfaces |
|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Design |
|---|
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | CE, FCC |
| Power |
|---|
| Power plug type | Type N |
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| External power adapter | Yes |
| Weight & dimensions |
|---|
| Width | 105 mm |
| Depth | 70 mm |
| Height | 26 mm |
| Weight | 196 g |
| Package width | 138 mm |
| Package depth | 285 mm |
| Package height | 66 mm |
| Package weight | 560 g |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data |
|---|
| Package width | 138 mm |
| Package depth | 285 mm |
| Package height | 66 mm |
| Package weight | 560 g |
| Packaging content |
|---|
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85176990 |
| Certificates |
|---|
| Certification | CE, FCC |

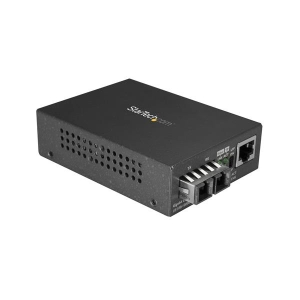

Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber
This fiber media converter converts and extends a Gigabit Ethernet fiber (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Converts and extends a Gigabit fiber (1000 Mbps) network over single-mode fiber on 1000BASE-LX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
