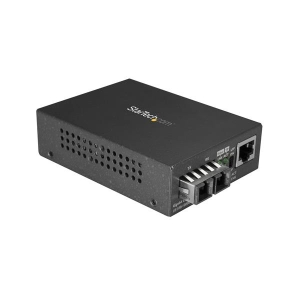

MCMGBSCMM055 | StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-SX

Network
Fiber optic connector	SC
Jumbo frames support	Yes
Store-and-forward	Yes
Flow control support	Yes
Jumbo frames	9000
Maximum data transfer rate	1000 Mbit/s
Converter input interface	100Base-TX, 1000Base-T
Networking standards	IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet interface type	Fast Ethernet, Gigabit Ethernet
Duplex system	Full
Converter output interface	1000Base-SX
Auto MDI/MDI-X	Yes
Performance
Jumbo frames support	Yes
Store-and-forward	Yes
Flow control support	Yes
Wavelength-division multiplexing (WDM)	No
Wavelength	850 nm
Maximum transfer distance	550 m
Fiber mode structure	Multi-mode
Mean time between failures (MTBF)	50000 h
Ports & interfaces
Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SC
Design
Internal	No
LED indicators	Activity, Link, Power
Housing material	Steel
Product colour	Black
Certification	CE, FCC, REACH
Power
Power plug type	Type N
Input voltage	100 - 240 V
Input current	0.5 A
Output voltage	5 V
Output current	2.6 A
Power consumption (typical)	5 W
External power adapter	Yes
Weight & dimensions
Width	97 mm
Depth	70 mm
Height	26 mm
Weight	200 g
Package width	280 mm
Package depth	133 mm
Package height	66 mm
Package weight	564 g
Operational conditions
Operating temperature (T-T)	0 - 50  Â°C
Storage temperature (T-T)	-10 - 70  Â°C
Operating relative humidity (H-H)	5 - 90%
Packaging data
Package width	280 mm
Package depth	133 mm
Package height	66 mm
Package weight	564 g
Packaging content
Quick installation guide	Yes
AC adapter included	Yes
Technical details
Sustainability certificates	RoHS
Harmonized System (HS) code	85176990
Certificates
Certification	CE, FCC, REACH
Logistics data
Master (outer) case width	595 mm
Master (outer) case length	375 mm
Master (outer) case height	320 mm
Products per master (outer) case	20 pc(s)

---

Convert and extend a Gigabit Ethernet connection up to 550 m over multimode SC fiber

This fiber media converter extends a Gigabit Ethernet (1000Mbps) network up to 550 m Â over multimode fiber, on 1000BASE-SX Â networks.

Extend your GbE network cost-effectively

The fiber media converter offers a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet Â network infrastructures. Â The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.

Reliable and scalable network connectivity

Supporting a maximum multimode fiber-optic cable distance of 550 meters (0.34 miles), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations over multimode fiber, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also offers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.

The MCMGBSCMM055 is backed by a StarTech.com 2-year warranty and free lifetime technical support. Â

The StarTech.com Advantage

- Converts and extends a Gigabit Ethernet fiber (1000Mbps) network over multimode fiber on 1000BASE-SX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 550 m over multimode fiber-optic cable (SC connection)
