All stock codes associated to this product
4XB7A17101, SVL4XB7A17101D, SVL-4XB7A17101-D, 0889488589135
| Performance |
|---|
| Interface | Serial ATA III |
| Component for | Server/workstation |
| SSD capacity | 480 GB |
| Memory type | TLC |
| Random read (4KB) | 79000 IOPS |
| Random write (4KB) | 30000 IOPS |
| Security algorithms | AES |
| Hot-swap | Yes |
| Hardware encryption | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| Compatible products | ThinkSystem S4520 |
| Design |
|---|
| SSD form factor | 2.5" |
| Features |
|---|
| Interface | Serial ATA III |
| Component for | Server/workstation |
| SSD capacity | 480 GB |
| Memory type | TLC |
| Random read (4KB) | 79000 IOPS |
| Random write (4KB) | 30000 IOPS |
| Security algorithms | AES |
| Hot-swap | Yes |
| Hardware encryption | Yes |
| Mean time between failures (MTBF) | 2000000 h |
| SSD form factor | 2.5" |
| Compatible products | ThinkSystem S4520 |
| Harmonized System (HS) code | 84717070 |
| Power |
|---|
| Power consumption (max) | 3 W |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Technical details |
|---|
| Interface | Serial ATA III |
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| SSD form factor | 2.5" |
| Harmonized System (HS) code | 84717070 |
| Weight & dimensions |
|---|
| Width | 70 mm |
| Depth | 100 mm |
| Height | 7 mm |
| Weight | 70 g |
| Package width | 174 mm |
| Package depth | 133 mm |
| Package height | 63 mm |
| Package weight | 434 g |
| Packaging data |
|---|
| Package width | 174 mm |
| Package depth | 133 mm |
| Package height | 63 mm |
| Package weight | 434 g |

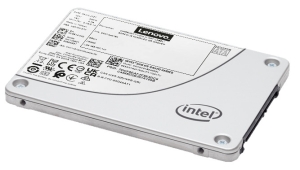

The ThinkSystem S4520 Read Intensive SATA SSDs use 144-layer Intel 3D NAND TLC Flash Memory technology with a 6Gbps SATA interface to provide an affordable solution with industry leading performance. This product guide provides essential presales information to understand the S4520 SSDs, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about S4520 SSDs and consider their use in IT solutions.
