IMG 1 of 1
Our Price:
$15,678.15
RRP:
$30,000.00
You Save:
$14,321.85
or quickly purchase this product
Backorder

Part Number:
527357
(?) Brand:
Manuf No:
C9300-48H-E
C930048HE
Shipping Weight:
7.72 KG (Includes product packaging)
Estimate Shipping

Enter email address to be notified when this item is available again

All stock codes associated to this product
C9300-48H-E, 5093081, C930048HE, 0889728230704, 889728230704

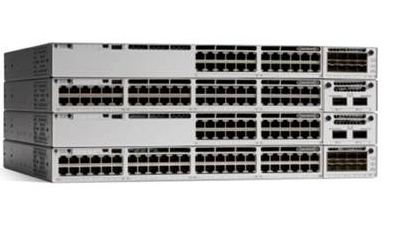

Cisco Catalyst C9300-48H-E network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey

Manufacturer: Cisco
Category: Networking
Sub-Category: Network Switches
SKU: C9300-48H-E
EAN: 0889728230704

Description

The Cisco® Catalyst® 9300 Series Switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence. The foundation of Software-Defined Access Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services. The Cisco Digital Network Architecture (Cisco DNA™) with SD-Access is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities.

Specifications

Management features
Multicast supportYes
Switch layerL2/L3
Switch typeManaged
Quality of Service (QoS) supportYes
MIB supportYes
Virtual LAN features
Number of VLANs4094
VLAN supportYes
Virtual LAN featuresVLAN Identifier ( VLAN ID)
Data transmission
Number of VLANs4094
Jumbo frames9198
MAC address table32000 entries
Switching capacity256 Gbit/s
Jumbo frames supportYes
Packet buffer memory16 MB
Forwarding rate190.48 Mpps
Performance
StackableYes
Packet buffer memory16 MB
Internal memory8000 MB
Flash memory16000 MB
Ports & interfaces
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity48
Network
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ap,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3z
Full duplexYes
Number of VLANs4094
VLAN supportYes
Routing entries32000
Virtual LAN featuresVLAN Identifier ( VLAN ID)
Security
Access Control List (ACL)Yes
DHCP featuresDHCP snooping
Multicast features
Multicast supportYes
Design
Rack mountingYes
StackableYes
Product colourGrey
Operational conditions
Operating temperature (T-T)-5 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 90%
Operating altitude0 - 3000 m
Weight & dimensions
Width445 mm
Depth445 mm
Height44 mm

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
