Part Number:
527361
(?) Brand:
Manuf No:
C9300L-48PF-4X-A
C9300L48PF4XA
Shipping Weight:
9.64 KG (Includes product packaging)
Estimate Shipping

Enter email address to be notified when this item is available again

All stock codes associated to this product
C9300L-48PF-4X-A, 4964326, C9300L48PF4XA, 0889728257824

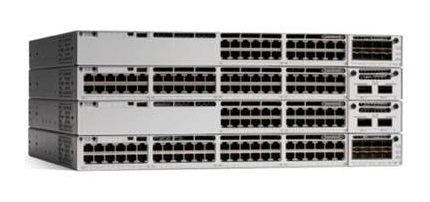

Cisco C9300L-48PF-4X-A network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Grey

Manufacturer: Cisco
Category: Networking
Sub-Category: Network Switches
SKU: C9300L-48PF-4X-A
EAN: 0889728257824

Description

The Cisco® Catalyst® 9300 Series switches are Cisco’s lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry’s most widely deployed switching platform. Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco’s lead enterprise architecture. At up to 480 Gbps, they are the industry’s highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density Wi-Fi 6 and 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch. The Catalyst 9300 Series is designed for Cisco StackWise® technology, providing flexible deployment with support for nonstop forwarding with Stateful Switchover (NSF/SSO), for the most resilient architecture in a stackable (sub-50-ms) solution. The highly resilient and efficient power architecture features Cisco StackPower®, which delivers high-density Cisco Universal Power over Ethernet (Cisco UPOE®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, Cisco IOS® XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence

Specifications

Management features
Multicast supportYes
Switch layerL2/L3
Switch typeManaged
Quality of Service (QoS) supportYes
Virtual LAN features
Number of VLANs4000
VLAN supportYes
Data transmission
Number of VLANs4000
MAC address table32000 entries
Jumbo frames supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Installed SFP+ modules quantity4
Network
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ap,IEEE 802.3bz,IEEE 802.3u,IEEE 802.3z
Full duplexYes
Number of VLANs4000
VLAN supportYes
10G supportYes
Security
Access Control List (ACL)Yes
DHCP featuresDHCP snooping
Multicast features
Multicast supportYes
Design
Rack mountingYes
Product colourGrey
Operational conditions
Operating temperature (T-T)-5 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)5 - 90%
Operating altitude0 - 3000 m
