7ZT7A00496 | Lenovo AUKP Internal Ethernet 10000 Mbit/s, ThinkSystem Broadcom

Ports & interfaces
Internal	Yes
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	2
Bandwidth
Maximum data transfer rate	10000 Mbit/s
Network
iSCSI support	Yes
Maximum data transfer rate	10000 Mbit/s
Ethernet LAN data rates	10,100,1000,10000 Mbit/s
Cabling technology	10GBase-T
Networking standards	IEEE 802.3ab, IEEE 802.3an
Maximum operating distance	100 m
Jumbo frames support	Yes
Design
Internal	Yes
Product colour	Black, Green
Certification	CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge
Operational conditions
Storage temperature (T-T)	-40 - 65  Â°C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Weight & dimensions
Width	69 mm
Depth	168 mm
Height	15 mm
Technical details
Harmonized System (HS) code	85176990
Certificates
Certification	CE/European Union EN60950-1 UL/USA UL60950-1 CTUVus UL Canada: CSA 22.2 No. 950 Taiwan: CNS14336 Class A EN55022:2010 + *AC:2011 Class A EN55024 Class A FCC CFR47, Part 15 Class A Canada: ICES-003 Class A Australia, New Zealand: EN 5022:2010 + *AC:2011 Taiwan: BSMI CNS13438 Class A South Korea: MIC RRL KN22 Class A South Korea: KN24 (ESD) Japan: VCCI V-3 04/2014 EN55024:2010 Air/Direct discharge
Other features
Harmonized System (HS) code	85176990

---

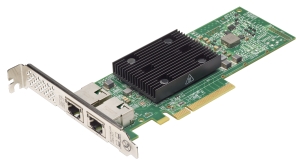

The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. This product guide provides essential presales information to understand the Broadcom adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the adapters and consider their use in IT solutions. The Broadcom NX-E 10Gb Base-T Ethernet Adapters are dual-port 10GBASE-T adapters that are fully compliant with the IEEE 802.3an standard and provide a low-cost solution for 10 Gb Ethernet using copper wiring. The adapters are available in either ML2 form factor or PCIe low-profile form factor for use in Lenovo ThinkSystem servers. The following figure shows the ThinkSystem Broadcom NX-E ML2 10Gb 2-Port Base-T Ethernet Adapter.
