All stock codes associated to this product
RK1219SIDEM, 1861389, 0065030845052
| Features |
|---|
| Size (imperial) | 48.3 cm (19") |
| Frame type | Open |
| Product design | 4-post |
| Rack capacity | 12U |
| Castor wheels | No |
| Adjustable mounting rails | No |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 159 kg |
| Material | Steel |
| Product colour | Black |
| Certification | UL, CE, RoHS |
| Weight & dimensions |
|---|
| Package width | 562 mm |
| Package depth | 592 mm |
| Package height | 690 mm |
| Package weight | 24.7 kg |
| Inner width | 533 mm |
| Mounting depth (max) | 53 cm |
| Width | 538 mm |
| Depth | 566 mm |
| Height | 659 mm |
| Weight | 18.8 kg |
| Size (imperial) | 48.3 cm (19") |
| Packaging content |
|---|
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 48 |
| Screws included | Yes |
| Number of screws | 48 |
| Packaging data |
|---|
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 48 |
| Package width | 562 mm |
| Package depth | 592 mm |
| Package height | 690 mm |
| Package weight | 24.7 kg |
| Screws included | Yes |
| Number of screws | 48 |
| Technical details |
|---|
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 12U |
| Other features |
|---|
| Compliance industry standards | EIA-310-D, EIA RS310-D |
Wall Mount your Server or Networking Equipment Sideways, for Easy Access

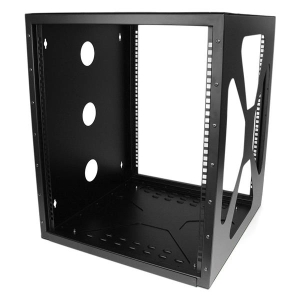

The RK1219SIDEM Wall Mount/Side Mount Deep Open Frame Rack/Cabinet (12U, 19in Wide) lets you mount your servers, A/V or network equipment facing perpendicular to the wall for easy access to mounted devices and equipment. The cabinet/rack features open access to both the front and back of your devices, making it easy to adjust cabling, view LEDs and access configuration buttons as needed; plus, the nature of the sidemount configuration allows for deeper mounting depths than typical wallmount racks. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.
Constructed of high-quality SPCC cold-rolled steel, for strength and durability, the open frame equipment rack allows for maximum airflow while still supporting a maximum weight capacity of 159 kg (350 lbs). The wall mount rack also ships complete with all of the M5 screws and cage nuts required to mount your equipment, saving the expense of purchasing them separately.
Backed by a StarTech.com Lifetime warranty.
The StarTech.com Advantage
- Sidemount wall configuration allows for a much greater mounting depth than typical wallmount racks, to accommodate nearly any equipment
- Side mount design provides easy front and back access to equipment for ease of setup and troubleshooting
- Open-frame racks allow for maximum airflow that helps to keep your equipment operating temperatures cooler for smoother operation and longer lifespan
