All stock codes associated to this product
C6PANEL24, 2709154, 0065030857475
Network |
---|
Ports quantity | 24 |
Connector(s) | RJ-45 |
Features |
---|
Mounting | Rack mounting |
Rack capacity | 1U |
Product colour | Black |
Certification | CE, ETl, UL |
Technical details |
---|
Mounting | Rack mounting |
Operating temperature (T-T) | -10 - 60 °C |
Package width | 55 mm |
Package height | 45 mm |
Sustainability certificates | RoHS |
Harmonized System (HS) code | 85371098 |
Design |
---|
Mounting | Rack mounting |
Rack capacity | 1U |
Product colour | Black |
Certification | CE, ETl, UL |
Operational conditions |
---|
Operating temperature (T-T) | -10 - 60 °C |
Operating relative humidity (H-H) | 10 - 65% |
Colour |
---|
Product colour | Black |
Certificates |
---|
Certification | CE, ETl, UL |
Weight & dimensions |
---|
Width | 483 mm |
Weight | 581 g |
Height | 34 mm |
Depth | 44 mm |
Package weight | 678 g |
Package width | 55 mm |
Package height | 45 mm |
Packaging data |
---|
Package weight | 678 g |
Package depth | 490 mm |
Package width | 55 mm |
Package height | 45 mm |
Logistics data |
---|
Harmonized System (HS) code | 85371098 |

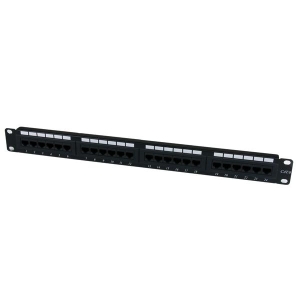

Organize up to 24 Cat6 patch cables
The C6PANEL24 Â 24-port 110-type Rack Mount Cat 6 Patch Panel is color coded for both T568A and T568B wiring providing the perfect solution for any voice or LAN application.
For hassle-free connections, the patch panel offers straight Cat 6 ports with 110-type termination, making it easy to insert and remove your cables. Â The 24-port patch panel also offers a quick and easy way to identify your cable runs, with port numbers clearly marked on the back of each RJ45 port, and a writeable/erasable marking surface for each port on the front of the panel for efficient system management.
Durably constructed of only top quality materials, this 24-port Network Patch Panel is backed by StarTech.com’s 2-year warranty.
The StarTech.com Advantage
- Organize up to 24 Cat6 patch cables
- Clearly numbered RJ45 ports make it easy to identify your cable runs
- Label each cable run on the writable / erasable marking surface of each port located on the front of the panel for efficient system management
