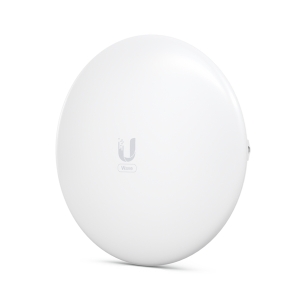

Ubiquiti Ubiquiti UISP Wave Nano Network transmitter White 10, 100, 1000 Mbit/s, 60 GHz PtMP station, 5km max

IMG 1 of 1
Our Price:
$566.70
or quickly purchase this product
Backorder
Part Number:
534379
(?) Brand:
Ubiquiti
Manuf No:
WAVE-NANO
WAVENANO
Shipping Weight:
2.56 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
WAVE-NANO, WaveNano, Wave-Nano, NHUWAVENANO, NHU-WAVE-NANO, 0810010078940

Ubiquiti UISP Wave Nano Network transmitter White 10, 100, 1000 Mbit/s

Manufacturer: Ubiquiti
Category: Networking
Sub-Category: Network Extenders
SKU: WAVE-NANO
EAN: 0810010078940 0810010078988

Description

60 GHz PtMP station powered by Wave Technology. Can connect to a Wave AP and deliver 2 Gbps total throughput (1 Gbps duplex). The Wave Nano is equipped with a high-performance 5GHz backup radio to ensure uninterrupted connection and a Bluetooth radio to simplify setup via the UISP® Mobile app.

Specifications

Performance
International Protection (IP) codeIPX6
Ethernet LAN data rates10,100,1000 Mbit/s
TypeNetwork transmitter
Maximum transfer distance5000 m
Power over Ethernet (PoE)Yes
Data transfer rate2000 Mbit/s
ChipsetDual ARM® Cortex®-A53 cores at 1 GHz
Mobile operating systems supportedAndroid, iOS
Technical details
Mounting typePole
International Protection (IP) codeIPX6
Reset buttonYes
Ethernet LAN data rates10,100,1000 Mbit/s
TypeNetwork transmitter
Maximum transfer distance5000 m
Power over Ethernet (PoE)Yes
Data transfer rate2000 Mbit/s
ChipsetDual ARM® Cortex®-A53 cores at 1 GHz
LED indicatorsYes
Antenna gain level (max)41 dBi
Sustainability complianceYes
Sustainability certificatesCE
Antenna
Antenna gain level (max)41 dBi
Network
Web-based managementYes
Cabling technology10/100/1000Base-T(X)
Wi-FiYes
Wi-Fi standardsWi-Fi 6 (802.11ax)
Security algorithmsAES, WPA2-PSK
Wi-Fi bandSingle-band (60 GHz)
Modulation8PSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, QPSK
Ports & interfaces
Ethernet LAN (RJ-45) ports1
Design
Housing materialAluminium, Plastic
Mounting typePole
Reset buttonYes
CertificationFCC, IC,
LED indicatorsYes
Product colourWhite
Rack mountingNo
Quantity per pack1 pc(s)
Power
Power consumption (transmitter) (max)18 W
Power over Ethernet (PoE)Yes
Operational conditions
Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width256.5 mm
Depth113.5 mm
Height256.5 mm
Weight932 g
Colour
Product colourWhite
Certificates
CertificationFCC, IC,
Memory
Internal memory512 MB
