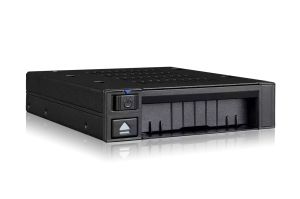

Icydock MB021VP-B flexiDOCK 2.5" U.2/U.3 NVMe SSD PCIe 4.0 Tray-less Enclosure for External 3.5" Drive Bay (1 x SlimSAS SFF-8654 4i, no Tri-mode support)

IMG 1 of 4
Our Price:
$122.65
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
536626
(?) Brand:
Icydock Web Site
Manuf No:
MB021VP-B
MB021VPB
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MB021VP-B, MB021VPB
  • Note 1: 03/17/2022 - The MB021VP-B is designed to be compatible with NVMe host cards only.Therefore, due to circuit board's design differences, the recently introduced Tri-mode NVMe/SAS/SATA host cards are not compatible with the MB021VP-B.If you have purchased the enclosure and are experiencing connectivity issues with Tri-mode cards, please contact us at[email protected]for further assistance.

    Note 2: To utilize an M.2, U.2, or U.3 NVMe SSD in a PCIe 16x or 8x slot, the motherboard or add-on card must support PCIe Bifurcation. This mode divides PCIe lanes into specific configurations like x4, x4, x4, x4 for a 16x slot or x4, x4 for an 8x slot, ensuring the SSD can be read by the system. For compatible hardware, please refer to theFAQ section. If your hardware is not listed there, pleasecontact usfor assistance.
  • Product Introduction
    The flexiDOCK MB021VP-B is a compact U.2 NVMe PCIe 3.0/4.0 SSD mobile rack enclosure supporting up to 64Gbps data transfer speeds through a Slimline SAS (SFF-8654) connection. It fits into a computer case's external 3.5" drive bay (floppy bay) and allows tray-less &door-less drive installation and removal. Users can access their enterprise U.2 SSD without opening the computer case or using any tools or screws. Simply insert a U.2 SSD and switch on the drive power, you are all set to go.
  • Tool-less, Removable &Elegant

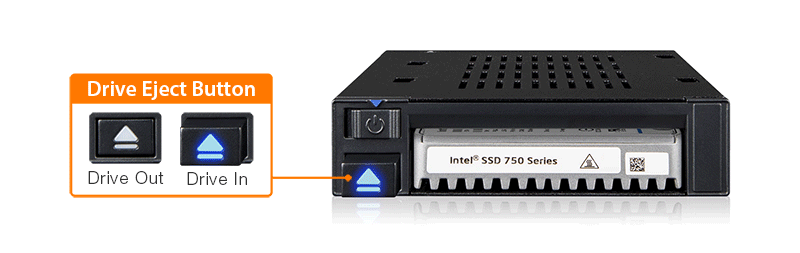

    The open front tray-less design lets users swap their bare U.2 NVMe SSDs within seconds. When a drive is inserted into MB021VP-B, the drive ejection button extends out. To remove the drive, press the ejection button back in and the drive will pop out. The Elegant &Easy-to-read LED drive activity light is built into the ejection button, indicating the drive's status.
  • Intelligent Drive Guiding Mechanism

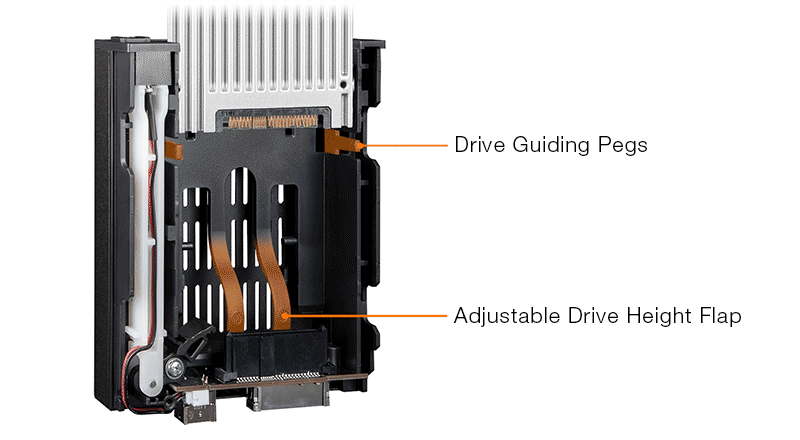

    We designed an intelligent drive guiding mechanism for a smooth and steady drive insertion/removal whether you are using a 7mm or 15mm height U.2 SSD. There are two drive guiding pecks on either side of the drive and a metal flap in the rear that adjusts automatically based on the drive height. Each guiding peck clamps the drive tightly while the adjustable metal flap pushes the drive down to improve the drive stability.
  • Superior Performance
    To unlock the full performance of U.2 NVMe PCIe 4.0x4 SSD, the MB021VP-B uses Slimline SAS (SFF-8654) connector to supports up to 64Gbps transfer rates and is backward compatible with U.2 NVMe PCIe 3.0 x4 SSD up to 32Gbps.
  • Individual Drive Power Switch

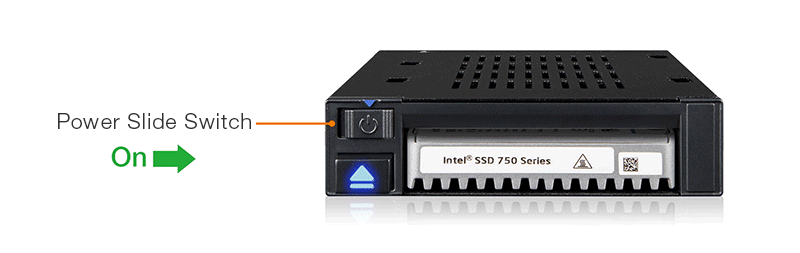

    flexiDOCK MB021VP-B is equipped with a slide power switch, allowing users to power off the drives while not in use and achieving reduced power consumption and elongated drive's life expectancy. It also helps against unforeseen malicious cyber attacks.
  • Packed with Features

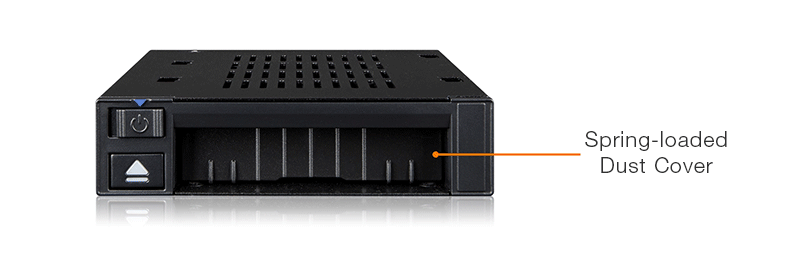

    The drive slot is covered by a spring-loaded dust cover to prevent dust and debris from entering the device and system.
  • The heavy-duty metal housing is able to withstand the harshest environments and offers ample heat dissipation for high wattage U.2 NVMe SSD. In addition, the Multi-Flow Technology allows air to move freely through the ventilation holes place on top and bottom of the device and keeps a low drive temperature.
  • Exceptional Product Compatibility
    The MB021VP-B is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations. For more information on product compatibility, clickhere.
  • The Slimline SAS and SATA power connectors support data and power cables with a locking latch design. Once the cables are connected, they will stay in place to prevent unintentional disconnections.
  • (Optional) M.2 NVMe SSD to U.2 NVMe SSD Adapter
    Converting your M.2 NVMe SSD into U.2 NVMe SSD withEZConvert MB705M2P-Badapter offers tool-less SSD installation and comes with a large heatsink designed explicitly for high-speed M.2 NVMe SSDs.
  • (Optional) 3.5" to 5.25" Drive Bay Bracket
    Converting your 5.25" device bay into a 3.5" device bay withFlex-Fit MB343SPdrive bay bracket, it features a solid one-piece design with additional dual 2.5" drive slots for extra drive storage.
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA &UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for flexiDOCK MB021VP-B
TAATrade Agreements Act Compliance
ULSafety Standard Certification
UL94Flammability of Plastic Materials
FCCFederal Communications Commission Compliance
Wide TemperatureMIL-STD-810H - Method 501.7 &502.7
*IEC 60529 (IPX5)Protection against water jets
*The drive mobile rack enclosure needs to have a customized front water-resistant panel added to pass the IEC 60529 (IPX5) certification. Water resistance refers to preventing water or dust from entering the enclosure through the front panel when the product is installed in the chassis, rather than making the entire enclosure water-resistant.

Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries,please contact us at[email protected]
Main Features
Supports 1x 2.5 U.2 NVMe PCIe 3.0/4.0 SSD (up to 15mm drive height)
Uses 1x Slimline SAS (SFF-8654) connector, pin-out defined by SFF-9402 Rev 1.1
Fits in 1x external 3.5" drive bay
Compliant with PCIe 3.0/4.0 up to 64Gbps transfer speeds
Heavy-Duty full-metal chassis with industrial-grade ABS plastic
Door-less and tray-less design for a quick bare drive swap
Large individual drive ejection button built-in with cool blue drive activity LED
Front accessible drive power switch
Industry-leading 3-year warranty against all defects
Complimentary support from professionally trained support agents

Specification
Model NumberMB021VP-B
ColorBlack
Support Drive Size2.5" SSD
Compatible Drive TypeU.2
Number of Drives1
Max Drive Height15mm
Drive Bay1 x external 3.5" drive bay
Host Interface1 x SlimSAS SFF-8654 4i, pin-out defined by SFF-9402 Rev 1.1
(Tri-mode HBA/RAID card incompatible)
Power Input1 x SATA 15pin
Transfer RateUp to 64Gbps (depending on SSD speed)
Support SSD CapacityNo limitation
Drive CoolingMetal heat dispersion with passive cooling
Structure / MaterialMetal with partial plastic
Product Dimension (L x W x H)101.6 x 125.3 x 25.4mm
Product Net Weight238g
Package Gross Weight287.2g
Drive Activity LED IndicationDrive power: solid blue; SSD access: flashing blue
Package contentsDevice, user manual, screw
M.2 Connector Insertion Rate5,000
Humidity5%~65% RH
Operating Temperature0C to 60C (32F to 140F)
Storage Temperature-35C to 70C (-31F to 158F)
ComplianceCE, RoHS, REACH
Warranty3 years

No additional files, specification sheets, guides or documentation found for product.
