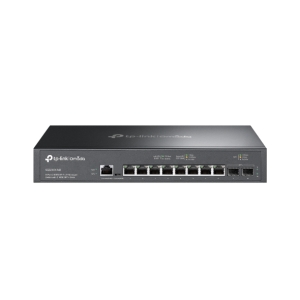

SG3210X-M2 | TP-Link Omada 8-Port 2.5G L2+ Managed Switch, 8x 2.5 Gbps

Management features
Multicast support	Yes
Traffic classification	Yes
ARP inspection	Yes
Switch layer	L2+
Switch type	Managed
Web-based management	Yes
System event log	Yes
Quality of Service (QoS) support	Yes
MIB support	RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Configuring Location Settings (CLI)	Yes
Cloud-managed	Yes
Network
IGMP snooping	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Networking standards	IEEE 802.1D, IEEE 802.1s, IEEE 802.1w
Number of VLANs	4000
Head-of-line (HOL) blocking	Yes
VLAN support	Yes
Spanning tree protocol	Yes
Rate limiting	Yes
Port mirroring	Yes
Link aggregation	Yes
IP routing	Yes
Flow control support	Yes
Ethernet LAN data rates	100,1000,2500 Mbit/s
Broadcast storm control	Yes
10G support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Virtual LAN features
Number of VLANs	4000
VLAN support	Yes
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN
Data transmission
Number of VLANs	4000
Multicast Listener Discovery (MLD) snooping	Yes
Jumbo frames	9000
MAC address table	16000 entries
Switching capacity	80 Gbit/s
Number of static routes	48
Number of IP interfaces	16
Jumbo frames support	Yes
Packet buffer memory	12 MB
Static route	Yes
Forwarding rate	59.52 Mpps
Performance
Packet buffer memory	12 MB
Harmonized System (HS) code	85176990
Fanless	Yes
Power
Power connector	AC-in jack
Power supply included	Yes
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
Power consumption (typical)	15 W
Power source	AC
Ports & interfaces
SFP+ module slots quantity	2
Basic switching RJ-45 Ethernet ports quantity	8
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
Console port	RJ-45/micro-USB
Power connector	AC-in jack
2.5G Ethernet (copper) ports quantity	8
Security
Loop protection	Yes
IP-MAC-Port binding	Yes
BPDU filtering/protection	Yes
Authentication	MAC-based authentication, Port-based authentication
Static port security	Yes
SSH/SSL support	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
MAC address filtering	Yes
IGMP snooping	Yes
Access Control List (ACL)	Yes
Password protection	Yes
Authentication type	AAA, TACACS+
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Multicast features
Multicast support	Yes
Multicast Listener Discovery (MLD) snooping	Yes
Protocols
Management protocols	SNMPv1/v2c/v3, SNTP
GARP VLAN Registration Protocol (GVRP)	Yes
Design
Rack mounting	Yes
Product colour	Black
Form factor	1U
LED indicators	Yes
Certification	CE, FCC, RoHS
Number of fans	2 fan(s)
Technical details
Harmonized System (HS) code	85176990
Mobile network
GARP VLAN Registration Protocol (GVRP)	Yes
Operational conditions
Operating temperature (T-T)	0 - 50  Â°C
Storage temperature (T-T)	-40 - 70  Â°C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Heat dissipation	51.18 BTU/h
Weight & dimensions
Width	294 mm
Depth	180 mm
Height	44 mm
Packaging data
Package type	Box
Quick start guide	Yes
Cables included	AC
Package width	528 mm
Package depth	250 mm
Package height	80 mm
Package weight	2.84 kg
Logistics data
Harmonized System (HS) code	85176990
Other features
Ethernet LAN data rates	100,1000,2500 Mbit/s
Packaging content
Quick start guide	Yes
Cables included	AC

---

Ultrafast 2.5G Managed Switch with 10G Uplink for Futuristic Network
SG3210X-M2

10G Lightning-Fast
Uplink Connection
2× 10 Gbps SFP+ Slots for High-Bandwidth Connectivity

2.5G Ports
for WiFi 7/6E/6
8× 2.5 Gbps Ports Uplock the Full Potential of WiFi 7/6E/6 APs

Centralized Cloud
Management
SDN Solutions Integration for a Highly Efficient Network

Advanced L2+
Features
Static Routing, IGMP Snooping, 802.1Q VLAN and More


Enterprise Switch
with 10G Uplink
2× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.


Unlock the Highest Performance of 2.5G Multi-Gig Bandwidth and Devices
8× 2.5-Gigabit ports unlock the highest performance of your Multi-Gig bandwidth and devices. Auto-negotiation speed connections sense the link speeds and intelligently adjust for compatibility and optimal performance for all your devices, including desktop, 4K video, 2.5G Wi-Fi 7/6E/6 APs, 2.5G NAS, 2.5G PCIe adapter, gaming console, VR gaming, and more.


Software Defined Networking (SDN) with Cloud Access
Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network–all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.

Enterprise Level Features
A complete lineup of L2+ features are supported, including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.

Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.

ISP Features
QinQ, L2PT PPPoE ID Insertion and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.

IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
