All stock codes associated to this product
RK12WALLO, 3731227, 0065030872225
| Weight & dimensions |
|---|
| Package width | 530 mm |
| Package depth | 670 mm |
| Package height | 130 mm |
| Package weight | 11 kg |
| Inner height | 53.4 cm |
| Mounting depth (max) | 30.5 cm |
| Width | 504 mm |
| Depth | 305 mm |
| Height | 641 mm |
| Weight | 8.6 kg |
| Packaging content |
|---|
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 48 |
| Screws included | Yes |
| Number of screws | 64 |
| Number of washers included | 48 |
| Features |
|---|
| Frame type | Open |
| Product design | 2-post |
| Rack capacity | 12U |
| Cable management | No |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH |
| Rack rails | Yes |
| Packaging data |
|---|
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 48 |
| Package width | 530 mm |
| Package depth | 670 mm |
| Package height | 130 mm |
| Package weight | 11 kg |
| Screws included | Yes |
| Number of screws | 64 |
| Number of washers included | 48 |
| Technical details |
|---|
| Sustainability certificates | RoHS |
| Harmonized System (HS) code | 85381000 |
| Rack capacity | 12U |
| Logistics data |
|---|
| Master (outer) case width | 530 mm |
| Master (outer) case length | 660 mm |
| Master (outer) case height | 120 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85381000 |
| Other features |
|---|
| Compliance industry standards | EIA/ECA-310-E |

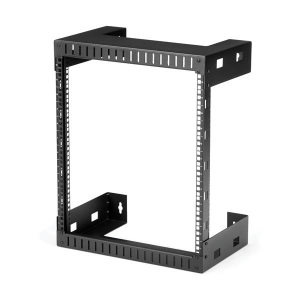

Mount your server or networking equipment using this 12U wall mount rackThis open-frame wall-mount server rack provides 12U of storage, allowing you to save space and stay organized. The equipment rack can hold up to 198 lb. (90 kg).Easy, hassle-free installationThe network rack is 12 in. (30.4 cm) deep, so it’s perfect for smaller spaces. It’s easy to assemble and features mounting holes that are spaced 16 in. apart, making it suitable for mounting on almost any wall, based on common wall-frame stud spacing. The wall-mount rack comes in a flat-pack which makes it easy to transport and reduces shipping costs.Free up spaceYou can mount the open-frame rack where space is limited, such as on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.Keep your equipment cool and accessibleBy having an open frame the server rack provides passive cooling to equipment. Additionally, the open frame provides easy access and configurability to your equipment, allowing you to maximize productivity.The RK12WALLO is backed by a StarTech.com 5-year warranty and free lifetime technical support.The StarTech.com Advantage
