Part Number:
537647
(?) Brand:
Manuf No:
TEF1118P-16-150W
TEF1118P16150W
Shipping Weight:
1.92 KG (Includes product packaging)
Estimate Shipping

Enter email address to be notified when this item is available again

All stock codes associated to this product
TEF1118P-16-150W, TD82032, TEF1118P16150W, 6932849431315

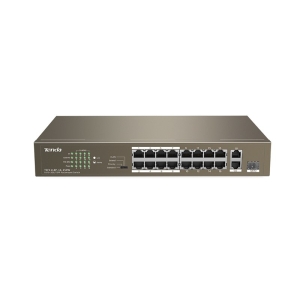

Tenda TEF1118P-16-150W network switch Unmanaged L2 Fast Ethernet (10/100) Power over Ethernet (PoE) 1U Black

Manufacturer: Tenda
Category: Networking
Sub-Category: Network Switches
SKU: TEF1118P-16-150W
EAN: 6932849431315 6932392831464

Description

TEF1118P-16-150W is a unmanaged PoE switch independently designed by Tenda. Compliant with IEEE 802.3af and IEEE 802.3at standards, it can identify PoE-powered devices intelligently. With a maximum PoE power output of 150 W, and 30 W for a single port, it can supply power when transmitting data with APs, IP cameras, and IP phones. The switch supports 4 working modes, including standard, priority, extend and VLAN modes, is an ideal choice for SMBs, hotels, schools, factories with video surveillance and wireless networking requirements. Dedicated for Surveillance & SMB Networking GE & SFP uplink ports,Large Buffer of Nearly 3M With one 10/100/1000 Mbps combo SFP slot, the switch can meet the current demand for uplink bandwidth of Gigabit WLAN and HD digital surveillance. Working with Tenda optical fibermodule TEG311SM, the switch supports a maximum transmission distance up to 20km. 6KV Excellent Lightning Protection The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc, and these greatly protect the switch from being damaged by thunderstorm. Besides, it supports wide voltage input, AC:100-240V~50/60Hz.. Cascading with 6 Devices Can Support IP Surveillance Project of up to 96 Cameras In the number of about 100 terminals accessed to the network, cascading 6 devices through the G1、G2/SFP2can achieve up to 96-channel monitoring, according to the project , it supports 300W/500W IP Caccessed and ensure stable video transmission without breaking up.If the both ends of devices are connected to the NVR, the video can be watched locally. 4 Modes for Different Networks Standard mode, Port-based Priority mode, Port-based VLAN mode and Extend mode make TEF1118P-16-150W be able to deal with different networks,special for small & Medium-sized IP surveillance & WI-FI coverage project. Mode 1: Standard Mode This is the default working mode of TEF1118P-16-150W. In the mode, all ports can communicate with each other independently. Mode 2: Port-based Priority Mode In this mode, ports 1 to 8 have higher priority than other ports, and all ports can communicate with each other. When the switch is connected to multiple IP cameras, you are recommended to use this mode for better smooth transmission with the key IP cameras connected to higher priority ports, and connect the 2 uplink ports (Ports G1 & G2/SFP2) to uplink devices (such as NVR or Router). Mode 3:Port-Based VLAN Mode In this mode, ports 1 to 16 can communicate with uplink ports (Ports G1 & G2/SFP2), but can not communicate with each other. You can use this mode to isolate broadcaststorm and prevent ARP virus and DHCP sproofing. Mode 4: Extend Mode Due to the complex monitoring environment, the distance from each terminal to the monitoring center is different, some even more than hundred meters. TEF1118P-16-150W can support 250 meters data transmission in the Extend mode, which can save the cost of your project with less devices used.

Specifications

Ports & interfaces
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
Basic switching RJ-45 Ethernet ports quantity18
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Combo SFP ports quantity1
Fast Ethernet (copper) ports quantity16
Gigabit Ethernet (copper) ports quantity2
Virtual LAN features
VLAN supportYes
Virtual LAN featuresPort-based VLAN
Power over Ethernet (PoE)
Power protection featuresOverload, Short circuit
Power over Ethernet (PoE) power per port30 W
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity16
Total Power over Ethernet (PoE) budget130 W
Management features
Switch layerL2
Switch typeUnmanaged
Network
Cable types supportedCat5, Cat5e
MAC address auto-learning supportedYes
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Full duplexYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
VLAN supportYes
Flow control supportYes
Broadcast storm controlYes
10G supportNo
Half duplexYes
Virtual LAN featuresPort-based VLAN
Data transmission
MAC address table4096 entries
Switching capacity7.2 Gbit/s
Store-and-forwardYes
Jumbo frames supportNo
Forwarding rate5.36 Mpps
Design
Wall mountableYes
Rack mountingYes
Product colourBlack
Form factor1U
LED indicatorsLink, PoE, Power
CertificationFCC, CCC
Performance
Harmonized System (HS) code85176990
FanlessYes
Technical details
Harmonized System (HS) code85176990
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Power
Power supply includedYes
Power protection featuresOverload, Short circuit
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power sourceAC
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 90%
Weight & dimensions
Width294 mm
Depth178.8 mm
Height44 mm
Sustainability
Sustainability complianceYes
Sustainability certificatesCE, RoHS
Logistics data
Harmonized System (HS) code85176990
