Cisco AIR-ANT2547V-N= network antenna Omni-directional antenna N-type 7 dBi, AIR-ANT2547V-N=, Dual-Band, 2.4-2.483GHz, 5.15-5.875GHz, N-Male, Silver

IMG 1 of 1
Our Price:
$411.30
RRP:
$753.40
You Save:
$342.10
or quickly purchase this product
Backorder
Part Number:
538031
(?) Brand:
Cisco Web Site
Manuf No:
AIR-ANT2547V-N-HZ
AIRANT2547VNHZ
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
AIR-ANT2547V-N-HZ, 2366826, AIRANT2547VNHZ

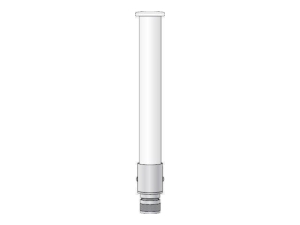

Cisco AIR-ANT2547V-N= network antenna Omni-directional antenna N-type 7 dBi

Manufacturer: Cisco
Category: Networking
Sub-Category: Network Antennas
SKU: AIR-ANT2547V-N-HZ
EAN:

Description

The Aironet Dual-Band Omnidirectional Antenna is designed for outdoor use with Cisco Aironet Outdoor Access Points with radios operating in the 2.4-GHz and 5-GHz frequency bands.

Specifications

Performance
Antenna gain level (max)7 dBi
Frequency band2.4/5 GHz
Impedance50 Ω
Horizontal beam width (5 GHz)14°
Horizontal beam width (2.4 GHz)30°
Antenna gain (5 GHz)7 dBi
Antenna gain (2.4 GHz)4 dBi
Features
Antenna gain level (max)7 dBi
Connector genderMale
Frequency band2.4/5 GHz
Antenna typeOmni-directional antenna
Voltage Standing Wave Ratio (VSWR)2:1
PurposeOutdoor
Impedance50 Ω
Horizontal beam width (5 GHz)14°
Horizontal beam width (2.4 GHz)30°
Antenna gain (5 GHz)7 dBi
Antenna gain (2.4 GHz)4 dBi
Antenna connector typeN-type
Product colourSilver
Operational conditions
Operating temperature (T-T)-40 - 85 °C
Weight & dimensions
Weight170 g
Width3.17 mm
Depth3.17 mm
Height282 mm
Diameter3.17 mm
Other features
Dimensions (WxDxH)3.17 x 3.17 x 282 mm
Frequency range2.4 - 2.483GHz, 5.15 - 5.875GHz

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers (Cisco) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
