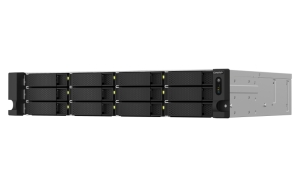

QNAP TS-1264U-RP-8G 12-Bay NAS (No Disk) Celeron ON QC 2.0GHz, 8GB, 2.5GbE(2),PCIe, 2U, RPSU

Storage
Storage drives installed	No
Installed storage drive type	No
Supported storage drive types	HDD & SSD
Number of storage drives supported	12
Online RAID migration	Yes
Online RAID expansion	Yes
Disk roaming	Yes
Bad block scan	Yes
RAID support	Yes
RAID levels	0, 1, 5, 6, 10, 50, 60, JBOD
Hot-swap drive bays	Yes
Supported file systems	FAT32, HFS+, NTFS, exFAT, ext3, ext4
Supported storage drive interfaces	Serial ATA II, Serial ATA III
Storage drive sizes supported	2.5,3.5"
RAID rebuild	Yes
Processor
Processor manufacturer	Intel
On-board graphics card model	Intel Â® UHD Graphics
Processor frequency	2.9 GHz
Processor cores	4
Memory
Internal memory type	DDR4
Internal memory	8 GB
Maximum RAM supported	16 GB
Memory slots	2 x SO-DIMM DDR4
Flash memory	4000 MB
Memory form factor	SO-DIMM
Network
Load balancing system	Yes
Link aggregation	Yes
Ethernet LAN	Yes
Dynamic DNS (DDNS)	Yes
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
DHCP client	Yes
DHCP server	Yes
Jumbo frames support	Yes
iSCSI support	Yes
Wake-on-LAN ready	Yes
Supported network protocols	PPTP, L2TP/IPSec, OpenVPN, QBelt
WLAN adapter supported	Yes
Ports & interfaces
USB port	Yes
HDMI version	1.4b
HDMI ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Graphics
On-board graphics card model	Intel Â® UHD Graphics
Design
Chassis type	Rack (2U)
Fan diameter 2	8 cm
Product colour	Aluminium, Black
Cooling type	Active
Number of fans	2 fan(s)
Fan diameter	8 cm
LED indicators	LAN, Power, Status
Performance
Built-in FTP server	Yes
System log	Yes
Share folder	CIFS/SMB
S.M.A.R.T. support	Yes
Hot spare	Yes
Disk scan	Yes
Browser supported	Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
Type	NAS
Universal Plug and Play (UPnP)	Yes
Device class	Small & Medium Business
Backup function	Yes
Backup features	Cloud, iSCSI LUN
Buzzer	Yes
Multilingual support	Yes
Operating system installed	QNAP QTS
Operating system version	5.0.0
Web-based management	Yes
Security algorithms	256-bit AES, FIPS 140-2, HTTPS, SNMP
Reset button	Yes
On/off switch	Yes
Management protocols	SNMP
Access Control List (ACL)	Yes
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Snapshot	Yes
USB copy function	Yes
Software
Operating system installed	QNAP QTS
Operating system version	5.0.0
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Linux operating systems supported	Yes
Mac operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Power
Power supply location	Built-in
Power supply unit (PSU) capacity	300 W
Number of power supply units	2
Power consumption (typical)	70.913 W
Power consumption (sleep)	37.854 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Fan voltage	12 V
Weight & dimensions
Width	482.2 mm
Depth	423.8 mm
Height	88.7 mm
Weight	9.43 kg
Package weight	14.1 kg
Technical details
Harmonized System (HS) code	84714100
Packaging content
Number of screws	48
Cables included	AC, LAN (RJ-45)
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Operating relative humidity (H-H)	5 - 95%
Storage temperature (T-T)	-20 - 70  Â°C
Logistics data
Harmonized System (HS) code	84714100

---

TS-1264U-RP
Intel Â® quad-core rackmount NAS with dual-port 2.5GbE and PCIe expandability for high-speed transmission and virtualization applications

Powered by an Intel Â® Celeron Â® N5105/N5095 quad-core processor (burst up to 2.9GHz), the TS-1264U-RP features two 2.5GbE RJ45 ports and Port Trunking for up to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia and virtual machine display. With a PCIe Gen 3 slot, the TS-1264U-RP provides flexibility in extending NAS functionality, allowing you to install various cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for AI image recognition. The TS-1264U-RP also supports AES 256-bit encryption to ensure the confidentiality of sensitive business data without affecting system performance. The TS-1264U-RP also features a redundant power supply to ensure maximum system uptime.


Quad-core high performance and up to 16GB RAM
The TS-1264U-RP is powered by an Intel Celeron N5105 / N5095 quad-core processor and supports up to 16 GB DDR4 memory, two 2.5GbE ports and SATA 6 Gb/s drives. The integrated Intel Â® AES-NI encryption engine also helps protect confidential data without impacting system performance.


Streamline large file transfers and video editing with 2.5GbE
The TS-1264U-RP comes with two 2.5GbE RJ45 (2.5G/1G/100M) LAN ports that allow you to use existing CAT5e cables to upgrade network speeds from 1 Gigabit to 2.5 Gigabit. The dual 2.5GbE ports also support Port Trunking for up to 5 Gbps transmission speeds, improving the efficiency of bandwidth-hungry business applications such as large file transfers, fast backup/restore, and multimedia transfer & editing.


Future-proof your IT infrastructure for high-speed networks
The TS-1264U-RP is ideally matched with QNAP’s managed and unmanaged 2.5GbE/10GbE switches to form high-speed, secure, and scalable network environments without going over budget. QNAP also provide 2.5GbE/5GbE/10GbE PCIe cards and USB 5GbE adapters for Windows Â®/Linux Â® workstations, allowing you to easily build a high-speed network environment for productive team collaboration.


Enhance productivity with multiple USB ports
With two USB 3.2 Gen 2 (10Gbps) ports and two USB 2.0 (480Mbps) ports, you can quickly backup and transfer large files to/from the TS-1264U-RP. UPS, and other compatible USB devices can also be connected for greater functionality and application potential.


Abundant I/O capabilities with PCIe expansion
The TS-1264U-RP has one PCIe Gen 3 x2 slot that allow for installing various expansion cards for expanding application potential.


SSD Caching and Auto Tiering for Optimized Storage Efficiency
The TS-1264U-RP supports SSD caching to improve the workflow of random IOPS demanding applications such as virtualization. Qtier™ Technology empowers the TS-1264U-RP with auto tiering that continuously optimizes storage utilization across high-performance SSD and high-capacity SATA drives. Qtier™ 2.0 features IO-awareness that empowers SSD tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSD.


Direct 4K HDMI output for multimedia and virtual machine display
The TS-1264U-RP features Intel Â® UHD Graphics that supports dual-channel hardware decoding and real-time transcoding*. The HDMI 1.4b output supports up to 4K (3840 x 2160p) @60Hz, providing great benefits for applications like video production/editing or industrial design that demands high resolution and color realism as well as intensive media storage, transfer, and display. By connecting the TS-1264U-RP to an HDMI display, you can directly watch multimedia content saved on the NAS, or use the TS-1264U-RP as a versatile workstation by directly outputting virtual machines from Virtualization Station or Ubuntu Linux Station.


Faster image identification with integrated Intel Â® OpenVINO™ AI engine.
With integrated Intel Â® OpenVINO™ AI computing resources, the TS-1264U-RP accelerates AI image recognition performance without impacting other applications or services. QNAP AI Core primarily works with the QuMagie application.


QTS 5, Fast, smooth, and easy-to-use!
The TS-1264U-RP comes with the QTS 5 operating system as standard, providing a next-generation usage experience with an updated system kernel, optimized user interface, and advanced security features.


Comprehensive backup and disaster recovery solution
The TS-1264U-RP supports various apps that cover all your backup needs. Practice safe IT habits by regularly backing up files and device content, allowing them to be easily restored when needed.


Multi-version snapshots mitigate ransomware threats
The TS-1264U-RP supports block-based snapshots that record the state of the system at any time. It helps protect data, which can be restored back to a specific point of time, greatly helping in mitigating the threat of ransomware.


All-in-one solution for hosting virtual machines and containers
By running multiple virtual machines and containers on the TS-1264U-RP, you can deploy multi-tenant environments and applications to increase management efficiency and save hardware costs. Coupled with the Network & Virtual Switch app that boosts interoperability between virtual machines, containers, QNAP NAS, and other physical devices on the network, you can flexibly allocate physical and virtual network resources to simplify network deployment.


Comprehensive security and privilege settings
The TS-1264U-RP is loaded with flexible privilege settings and security measures. Besides IP blocking, 2-step verification, HTTPS connection, there are more apps that help ensure optimal NAS protection against threats like malware and hackers.


The best file storage and collaboration center
The TS-1264U-RP integrates rich apps for storing, managing, synchronizing, searching, and archiving files. It supports SMB/CIFS, AFP, and NFS protocols for streamlined file sharing across Windows Â®, Mac Â®, and Linux Â®/UNIX Â®, and provides the smartest NAS solution for professionally managing your files.


Smart surveillance solution for 24/7 security
QVR Elite is QNAP’s subscription-based smart surveillance solution, allowing you to easily build a surveillance system with lower TCO and higher scalability. Recordings are saved as MP4 files, allowing playback on nearly every device. QVR Elite also integrates QNAP AI-based solutions to build smart facial recognition for retail and door access systems with QNAP NAS. You can arrange a dedicated, independent storage space for surveillance data on the TS-1264U-RP and enjoy simplified camera management, storage space allocation, camera live viewing and playback.


Flexible and economical storage expansion
QNAP provides easy ways to expand your storage capacity. Here are several ways to expand your TS-1264U-RP storage as needed to accommodate data and business growth.

A health check for your hard drives
Hard drives are at the heart of your NAS, and ensuring their long-term health and reliability is absolutely crucial. QNAP provides various methods and tools to help you monitor hard drive health, ensuring that you can take proactive decisions to safeguard your data and files.
