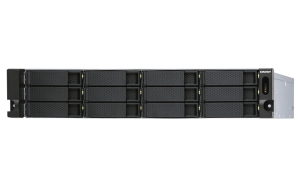

QNAP TL-R1200S-RP 12-Bay 2U Rackmount SATA JBOD Expansion Unit

Storage
Number of storage drives supported	12
Storage drive size	2.5/3.5"
Supported storage drive interfaces	Serial ATA III
Hot-swap	Yes
Ports & interfaces
USB connectivity	No
Design
Product type	HDD/SSD enclosure
On/off switch	Yes
Rack mounting	Yes
Rack capacity	2U
Number of fans	2 fan(s)
LED indicators	Fan fail, HDD, Link
Fan diameter	7 cm
Product colour	Black, Grey
Performance
Noise level	33.7 dB
Data transfer rate	6 Gbit/s
Power
Power source type	AC
AC adapter input voltage	100 - 240 V
AC adapter frequency	50/60 Hz
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Storage temperature (T-T)	-20 - 70  Â°C
Operating relative humidity (H-H)	5 - 95%
Weight & dimensions
Weight	6.17 kg
Width	482 mm
Depth	534 mm
Height	89 mm
Packaging content
Screws included	Yes
Manual	Yes
Cables included	AC, MiniSAS
Other features
Host interface	3 x SFF-8088
Technical details
Harmonized System (HS) code	84733080
Logistics data
Harmonized System (HS) code	84733080

---

TL-R1200S-RP Rackmount JBOD storage enclosure allows you to back up and expand your QNAP NAS, Windows Â® and Ubuntu Â® computers and servers. Features twelve 3.5-inch SATA 6Gb/s drive bays, the TL-R1200S-RP comes with a QXP PCIe card for connecting the enclosure using a SFF-8088 (or SFF-8644) cable. It provides reliable read/write performance for smooth storage and backup tasks.


High-performance of TL SATA JBOD

The TL SATA JBOD supports multi-lane SATA 6Gb/s transfer, and each SATA lane directly connects to a single SATA drive to help improve performance. With the 1-1 high-speed channel, the TL SATA JBOD delivers excellent transfer performance.


Flexible Storage Configuration and Management

The TL-R1200S-RP provides software-controlled storage configuration for greater management flexibility. You can configure RAID and monitor JBOD enclosure and disk health with Storage & Snapshots when connected to a QTS or QuTS hero NAS, or with the QNAP JBOD Manager utility when connected to a computer.


What you need to know

You can connect your TL-R1200S-RP to Windows Â® and Ubuntu Â® computers and servers through the SFF-8088 (or SFF-8644) high-speed cable and use built-in utility to manage the RAID configuration.


Intelligently Monitor JBOD Enclosure Status on PC and Servers with QNAP JBOD Manager

The QNAP JBOD Manager is a desktop utility for monitoring the TL-R1200S-RP on Windows and Ubuntu computers. You can quickly obtain the disk statuses, JBOD information and health, view fan rotation speed, and check for firmware version updates. All device events are recorded, and will send desktop notifications when a system alert occurs.


Flexibly Expand Connectivity with QXP PCIe Cards

Install an exclusive QXP PCIe card onto your QNAP NAS, Windows Â® or Ubuntu Â® PC and servers to connect the JBOD enclosure via SFF-8088 (or SFF-8644) cable, for easy and flexible storage expansion.


Versatile usage scenarios to meet storage expansion needs

The TL-R1200S-RP meets many storage expansion requirements for the home and office. Below is a list of potential application scenarios:


Scenario 1: Expand your NAS capacity

The TL-R1200S-RP provides an alternative method for users to expand their NAS storage capacity. By connecting the TL-R1200S-RP to their NAS and using Storage & Snapshots Manager in QTS or QuTS hero, users can easily configure and manage their storage expansion. The TL-R1200S-RP supports a variety of QNAP NAS storage and file management functions, allowing users to build storage pools, finding files with Qsirch, and organizing files with Qfiling.


Scenario 2: External storage for your NAS

You can use the TL-R1200S-RP to expand your NAS storage. You can select disks to create storage pools for expanding your NAS capacity, or you can treat each disk as an individual external storage space and use it as a removable drive for greater flexibility. Regardless of the mode you use, you can always use Storage & Snapshots Manager in QTS or QuTS hero to set up and manage your TL-R1200S-RP and use hard drive S.M.A.R.T. and Notification Center to check disk status anytime and anywhere.


- Scenario 3: Expand the storage space of your Windows Â® and Ubuntu computers and servers

You can use your TL-R1200S-RP with Windows Â® and Ubuntu Â® computers and servers to expand more storage space. You can set up the RAID configuration of your TL-R1200S-RP to further secure data protection. Moreover, you can also use the single disk mode and format with exFAT file system for more convenient access and sharing of files between Windows Â® and Ubuntu Â® computers.


Scenario 4: Third-party hardware RAID card for advanced protection

You can install third-party hardware RAID cards on your TL-R1200S-RP for advanced hardware RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, and RAID 60 protection and use Windows Â® utility software to manage your TL-R1200S-RP.


TL-R1200S-RP Offers Better Performance Than Other USB and eSATA JBOD Solutions

The TL-R1200S-RP features SFF-8088 (or SFF-8644) connectivity and multiple SATA 6Gb/s bays. This provides better sequential read performance and faster data transfer speeds than existing USB and eSATA expansion enclosures, while also being a more economical option compared to a QNAP REXP SAS enclosure.
