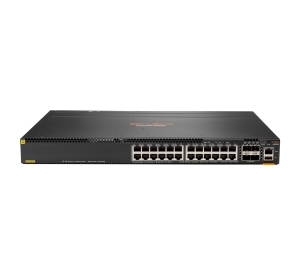

Aruba 6300M 24-port 1GbE Class 4 PoE & 4-port SFP56 Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U

Manufacturer: Aruba
Category: Networking
Sub-Category: Network Switches
SKU: JL662A
EAN: 0190017339467

Description

The Aruba CX 6300 Switch Series is a modern, flexible, and intelligent family of AOS-CX stackable switches ideal for enterprise access and aggregation. With a cloud-centric design that combines a fully programmable OS with the Aruba Network Analytics Engine, the Aruba CX 6300 extends industry-leading monitoring and troubleshooting capabilities to the access layer. Support of Aruba NetEdit and the Aruba CX Mobile App verify that configurations are flawless and easy to deploy. A powerful Aruba Gen7 ASIC architecture delivers fast, non-blocking performance, meaning your network is ready for tomorrow’s unpredictable demands. Aruba Virtual Stacking Framework (VSF) allows for stacking of up to 10 switches, providing scale and simplified management. This flexible series has built-in wirespeed 1/10/25/50GbE uplinks and supports high density IEEE 802.3bt high power PoE with HPE Smart Rate multi-gigabit Ethernet for high speed APs and IoT devices using existing cabling. Features Automation and Analytics - The Aruba CX 6300 Switch Series delivers unparalleled visibility with built-in analytics for real-time monitoring and troubleshooting to help fix problems faster. The Aruba Network Analytics Engine (NAE) automatically interrogates and analyzes events that can impact network health. - Advanced telemetry and automation provide the ability to easily identify and troubleshoot network, system, application and security related issues easily, through the use of Python agents and REST APIs. - The Time Series Database (TSDB) stores configuration and operational state data, making it available to quickly resolve network issues. Performance and Power - The Aruba CX 6300 Switch Series uses a fully distributed architecture with Aruba Gen7 ASICs that deliver very low latency, increased packet buffering, and adaptive power consumption. All switching and routing are wire-speed to meet the demands of bandwidth-intensive applications. - Aruba Virtual Switching Framework (VSF) allows you to quickly grow your network using high performance front plane stacking. Four built-in QSFP28 ports support speeds of 1GbE, 10GbE, 25GbE, and 50GbE for a total of up to 200 Gbps of stacking throughput per switch. - Deploy wireless access points and IoT devices with Aruba CX 6300 models that offer high density HPE Smart Rate multi-gigabit Ethernet with 60W PoE on every port for a total of 2880W of PoE. Smarter Segmentation - The Aruba CX 6300 Switch Series supports Aruba Dynamic Segmentation that automatically applies and enforces user, device, and application-aware policies on Aruba wired and wireless infrastructures. - Automated device profiling, role-based access control, and Layer 7 firewall features deliver enhanced visibility and performance for a better overall experience for both IT and end-users alike. - Switch-to-switch tunnels enable scalable multi-tenancy support with VXLAN to VRF mapping, while allowing policy application via user roles.

Specifications

Management features
Multicast supportYes
Switch layerL3
Switch typeManaged
Quality of Service (QoS) supportYes
Network
IGMP snoopingYes
Networking standardsIEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ad, IEEE 802.1af, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x, IEEE 802.3z
Full duplexYes
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Link aggregationYes
IP routingYes
Flow control supportYes
Auto MDI/MDI-XYes
10G supportYes
Virtual LAN features
VLAN supportYes
Performance
StackableYes
Packet buffer memory8 MB
Physical stacking (units)10
Processor frequency1800 MHz
Memory typeDDR4-SDRAM
Internal memory8192 MB
Flash memory32768 MB
Built-in processorYes
Processor modelARM Cortex-A72
Harmonized System (HS) code85176990
Ports & interfaces
SFP+ module slots quantity4
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Data transmission
MAC address table32768 entries
Switching capacity448 Gbit/s
Throughput334 Mpps
Latency (1 Gbps)2.2 µs
Latency (10 Gbps)1.46 µs
Jumbo frames supportYes
Packet buffer memory8 MB
Security
SSH/SSL supportYes
IGMP snoopingYes
Access Control List (ACL)Yes
DHCP featuresDHCP server
Multicast features
Multicast supportYes
Protocols
Routing protocolsBGP, BGP4, IP, OSPF, OSPFv2, OSPFv3
Design
Rack mountingYes
StackableYes
Form factor1U
Technical details
Harmonized System (HS) code85176990
Power
Power consumption (max)74 W
Power supply includedNo
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Total Power over Ethernet (PoE) budget720 W
Operational conditions
Operating temperature (T-T)0 - 45 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)15 - 95%
Weight & dimensions
Width442 mm
Depth385 mm
Height44 mm
Weight5 kg
Logistics data
Harmonized System (HS) code85176990
