Our Price:
$421.30
RRP:
$519.67
You Save:
$98.37
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days

Part Number:
543007
(?) Brand:
Manuf No:
S1U76A
Shipping Weight:
0.77 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
S1U76A, 6077317, 0190017676296

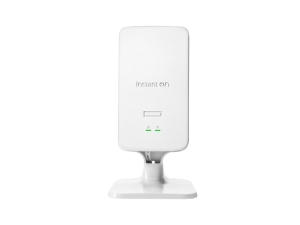

HPE Instant On AP22D 1200 Mbit/s White Power over Ethernet (PoE)

Manufacturer: HPE
Category: Networking
Sub-Category: Wireless Access Points
SKU: S1U76A
EAN: 0190017676296

Description

The HPE Networking Instant On Access Points AP22D is an SMB-focused Wi-Fi Certified 6 access point that provides reliable wired and wireless connectivity over a 2.5GbE uplink port with a minimal device footprint. This access point can reduce device clutter while powering downlink devices such as IP Phones or receipt printers with 2x 15W of PoE(802.3af) and supporting 75+ wireless devices over 802.11ax Wi-Fi 6 with an aggregate wireless throughput of 1.7Gbps.
Easily manage the Instant On AP22D with the Instant On mobile app or portal to create guest and employee networks, govern access control lists, and set POE schedules to customize power use. Make the most of your limited space in your small business by mounting the Instant On AP22D to a desk or wall with included mounting kits.

Specifications

Performance
2.4 GHzYes
5 GHzYes
Maximum data transfer rate1200 Mbit/s
Ethernet LAN data rates1000,2500 Mbit/s
Number of users75 user(s)
Networking standardsIEEE 802.11ax, IEEE 802.3at, IEEE 802.3bt
MIMOYes
Features
6 GHzNo
2.4 GHzYes
5 GHzYes
Maximum data transfer rate1200 Mbit/s
Ethernet LAN data rates1000,2500 Mbit/s
Number of users75 user(s)
Networking standardsIEEE 802.11ax, IEEE 802.3at, IEEE 802.3bt
Cabling technology10/100/1000Base-T(X)
MIMOYes
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)1200 Mbit/s
Security
Security algorithmsOWE, WPA2, WPA3
Ports & interfaces
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports5
DC-in jackYes
Cabling technology10/100/1000Base-T(X)
Power
Power consumption (max)51 W
Power consumption (typical)50 W
Power over Ethernet (PoE)Yes
DC voltage range48 V
Design
PlacementDesk, Wall
Product colourWhite
Cable lock slotYes
Cable lock slot typeKensington
Antenna
Antenna typeInternal
Antennas quantity2
Antenna gain level (max)5.4 dBi
Antenna direction typeOmni-directional
Weight & dimensions
Width86 mm
Depth47 mm
Height150 mm
Weight360 g
Operational conditions
Operating temperature (T-T)0 - 40 °C

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2 year return to base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
