All stock codes associated to this product
4XC7A08242, 5322379, SVL-4XC7A08242-D, SVL4XC7A08242D, 0889488497348
| Ports & interfaces |
|---|
| Internal | Yes |
| PCI version | 3.0 |
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 4 |
| Fiber optic connector | SFP28 |
| Bandwidth |
|---|
| Maximum data transfer rate | 25000 Mbit/s |
| Network |
|---|
| Ethernet interface type | 25 Gigabit Ethernet |
| Maximum data transfer rate | 25000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 25000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1Qbg, IEEE 802.3ad, IEEE 802.3az |
| Design |
|---|
| Internal | Yes |
| Product colour | Green, Stainless steel |
| Certification | CB, cTUVus, CE, FCC, VCCI, ICES, RCM |
| Compatible products | SR655/SR635 |
| Component for | Server |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Performance |
|---|
| Compatible products | SR655/SR635 |
| Technical details |
|---|
| Harmonized System (HS) code | 85176990 |
| Certificates |
|---|
| Certification | CB, cTUVus, CE, FCC, VCCI, ICES, RCM |
| Other features |
|---|
| Harmonized System (HS) code | 85176990 |
Abstract The ThinkSystem Broadcom 57454 10/25GbE SFP28 Ethernet Adapters are high-performance 25 Gb Ethernet adapters in either standard PCIe form factor or the Open Compute Project (OCP) 3.0 SFF form factor. This product guide provides essential presales information to understand the adapters and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about Broadcom 25 GbE network adapters and consider their use in IT solutions.
Change History Changes in the February 18 update: - New ThinkSystem Broadcom 57454 10/25GbE SFP28 4-port PCIe Ethernet Adapter

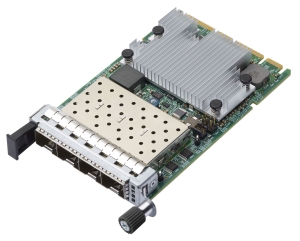

Introduction The ThinkSystem Broadcom 57454 10/25GbE SFP28 Ethernet Adapters are high-performance 25 Gb Ethernet adapters in either standard PCIe form factor or the Open Compute Project (OCP) 3.0 SFF form factor. They offer TruFlow™ intelligent flow processing and supports advanced networking technologies including RoCE v1/2, SDN, NFV and virtualization.
Networking
