Lenovo 4XB7A13999 internal solid state drive M.2 960 GB PCI

Performance
Interface	PCI Express 4.0
Component for	Server/workstation
SSD capacity	960 GB
NVMe	Yes
Memory type	3D TLC NAND
Random read (4KB)	520000 IOPS
Random write (4KB)	82000 IOPS
Read latency	80  Âµs
Write latency	15  Âµs
S.M.A.R.T. support	Yes
ECC	Yes
Hot-swap	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	2000000 h
Design
Certification	CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
SSD form factor	M.2
Features
Interface	PCI Express 4.0
Component for	Server/workstation
SSD capacity	960 GB
NVMe	Yes
Memory type	3D TLC NAND
Random read (4KB)	520000 IOPS
Random write (4KB)	82000 IOPS
Read latency	80  Âµs
Write latency	15  Âµs
S.M.A.R.T. support	Yes
ECC	Yes
Hot-swap	Yes
Hardware encryption	Yes
Mean time between failures (MTBF)	2000000 h
Certification	CE (Europe): EN55032, EN55024 Class B, RoHS FCC: CFR Title 47, Part 15, Class B UL/cUL: approval to UL-60950-1, 2nd Edition, IEC 60950-1:2005 (2nd Edition); EN 60950-1 (2006) + A11:2009+ A1:2010 + A12:2011 + A2:2013 BSMI (Taiwan): approval to CNS 13438, Class B, CNS 15663 RCM (Australia, New Zealand): AS/NZS CISPR32 Class B KC RRL (Korea): approval to KN32 Class B, KN 35 Class B W.E.E.E.: Compliance with EU WEEE directive 2012/19/EC. TUV (Germany): approval to IEC60950/EN60950 VCCI (Japan): 2015-04 Class B IC (Canada): ICES-003 Class B Morocco: EN55032, EN55024 Class B UkrSEPRO (Ukraine): EN55032 Class B, IEC60950/EN60950, RoHS (Resolution 2017 No. 139) UKCA (UK): SI 2016/1091 Class B and SI 2012/3032 RoHS
SSD form factor	M.2
M.2 SSD size	2280 (22 x 80 mm)
Power
Power consumption (write)	5.7 W
Power consumption (read)	7 W
Operational conditions
Operating temperature (T-T)	0 - 70  Â°C
Storage temperature (T-T)	-40 - 85  Â°C
Operating shock	1500 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
Minimum operating temperature	5  Â°C
Maximum operating temperature	95  Â°C
Technical details
Interface	PCI Express 4.0
Operating temperature (T-T)	0 - 70  Â°C
Storage temperature (T-T)	-40 - 85  Â°C
Operating shock	1500 G
Non-operating vibration	20 G
Maximum operating altitude	3050 m
SSD form factor	M.2

---

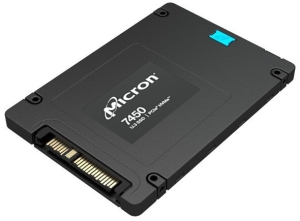

The ThinkSystem 7450 PRO Read Intensive NVMe SSDs are general-purpose yet high-performance family of NVMe solid-state drives. They are engineered for greater performance and endurance in a cost-effective design, and to support a broader set of workloads. Now with SED encryption as standard, these drives help ensure data security, even when the drive is removed from the server.

This product guide provides essential presales information to understand the ThinkSystem 7450 PRO Read Intensive NVMe SSDs offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the 7450 PRO SSDs and consider their use in IT solutions.
