Part Number:
548140
(?) Brand:
Manuf No:
C050067B004B
Shipping Weight:
2.2 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
C050067B004B, CBPP670

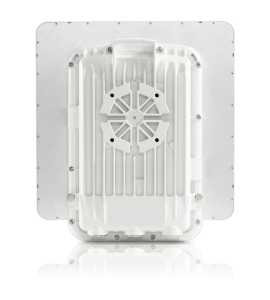

Cambium Networks PTP 670 network antenna MIMO directional antenna N-type 164 dBi

Manufacturer: Cambium Networks
Category: Networking
Sub-Category: Network Antennas
SKU: C050067B004B
EAN:

Description

PTP 670 systems provide 4.9 to 6.05 GHz, multi-band flexibility in a single radio and operate in channel sizes from 5 to 45 MHz.

Service providers, government public safety agencies, and critical
infrastructure operators such as utilities and energy companies have
experienced massive growth in bandwidth demands for reliable
and secure broadband connectivity and backhaul. The nature
of these deployments for small-cell backhaul, disaster recovery,
video surveillance and Wi-Fi backhaul drive variety of deployment
topologies.
Now with the Point-to-Point (PTP) 670 Series solution, Cambium
Networks combines best-in- class spectral efficiency and reliability
with high-capacity multipoint (HCMP) deployment flexibility. With
up to 450 Mbps aggregate throughput, PTP 670 systems let you
flexibly, reliably and securely handle today’s needs.

Specifications

Performance
Bandwidth note20 - 40 MHz
Antenna gain level (max)164 dBi
Networking standardsIEEE 802.3
Frequency band4.9 - 6.05 GHz
Modulation256-QAM
Gain23 dBi
Features
Survival wind speed322 km/h
International Protection (IP) codeIP66, IP67
Antenna gain level (max)164 dBi
Networking standardsIEEE 802.3
Frequency band4.9 - 6.05 GHz
Modulation256-QAM
Antenna typeMIMO directional antenna
Maximum operating distance250000 m
Gain23 dBi
Antenna connector typeN-type
Product colourWhite
Power
Power source typeAC, PoE
Power consumption (max)30 W
Operational conditions
Operating temperature (T-T)-40 - 75 °C
Weight & dimensions
Weight4.1 kg
Width305 mm
Depth305 mm
Height81 mm
