Icydock MB118VP-B ToughArmor 6 Bay 2.5" U.2/U.3 NVMe SSD (7mm) PCIe 4.0 Mobile Rack Enclosure for External 5.25" Drive Bay (3 x SlimSAS SFF-8654 8i)

IMG 1 of 6
Our Price:
$516.90
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
548880
(?) Brand:
Icydock Web Site
Manuf No:
MB118VP-B
MB118VPB
Shipping Weight:
1 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
MB118VP-B, MB118VPB
  • Note: To utilize an M.2, U.2, or U.3 NVMe SSD in a PCIe 16x or 8x slot, the motherboard or add-on card must support PCIe Bifurcation. This mode divides PCIe lanes into specific configurations like x4, x4, x4, x4 for a 16x slot or x4, x4 for an 8x slot, ensuring the SSD can be read by the system. For compatible hardware, please refer to the FAQ section. If your hardware is not listed there, please contact us for assistance.
  • The ToughArmor MB118VP-B is a rugged six-bay enclosure designed for U.2/U.3 NVMe SSDs. It supports drives up to 7mm in height and offers PCIe 4.0 speed, allowing for blazing-fast data transfer rates of up to 64Gb/s via its SlimSAS (SFF-8654) interface.
  • Constructed with heavy-duty full-metal materials, this enclosure is equipped with removable drive trays that make drive installation and removal quick and simple. Additionally, the MB118VP-B is designed with dual 40x20mm cooling fans that maintain optimal temperatures for high-speed U.2/U.3 SSDs within the enclosure.
  • Removable Drive Tray Design
    NVMe U.2/U.3 SSDs are typically installed inside the computer case, making maintenance a difficult and time-consuming process. The ToughArmor MB118VP-B brings your drives to the front 5.25" optical drive bay, utilizing removable drive trays for hassle-free maintenance. These removable drive trays are compatible with standard U.2/U.3 SSDs up to 7mm in drive height, ensuring easy installation and removal of your drives.
  • Superior PCIe 4.0 Performance
    The ToughArmor MB118VP-B provides exceptional performance for data-intensive applications that demand speed and reliability. Equipped with SlimSAS 8i (SFF-8654) connectors, each drive in the enclosure can achieve transfer speeds of up to 64Gb/s, twice as fast as PCIe 3.0 and ten times faster than SATA standards, which unleash the full potential of NVMe Gen 4.0 x4 SSDs. The lightning-fast IOPS (Input/output operations per second) makes the MB118VP-B an ideal storage solution for autonomous driving, real-time forecasting, film editing, and military computing applications, where high-speed data processing is critical.
  • Maximizing Cooling Performance
    By incorporating dual high-performance 40x20mm cooling fans, the ToughArmor MB118VP-B can effectively dissipate the heat generated by U.2/U.3 SSDs through intelligently placed ventilation holes throughout the entire enclosure, which allow the heat to disperse evenly and maintain optimal operating temperatures for your drives.
  • ToughArmor Protection
    Ensuring the enclosure can be relied upon for many years, the ToughArmor MB118VP-B is capable of holding up in the harshest environment. The enclosure is equipped with rugged, heavy-duty full-metal protection throughout the entire device and tray, making it ideal for a system that may require a flammability rating. The exceptional build quality makes it suitable for various enterprise systems, including military and law enforcement systems, in-vehicle computers, and manufacturing conditions such as embedded control and factory automation systems.
  • EMI Grounding Technology
    Grounding your drives is essential to prevent hardware damage from static shocks when swapping drives. Our innovative EMI grounding technology ensures that once the drive is screwed onto the drive tray, it remains constantly grounded throughout the tray, housing, and computer system to protect the U.2/U.3 SSDs from static electrical surges during drive swapping.
  • Packed with Features

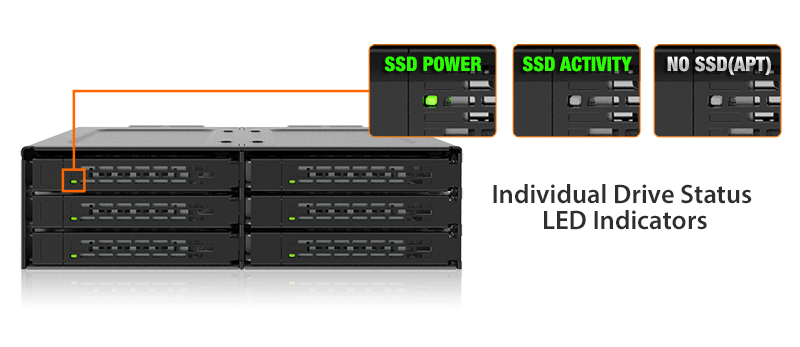

    The drive tray features an LED status light that indicates when your drive is powered up and in use. When no drives are installed, the LED will shut off to conserve power.
  • Keep track of your drives easily with the included individual drive ID labels. You'll always know which drive tray belongs in your RAID array or which drives contain specific files. Rearrange them as needed or remove them for a simplified look.
  • The ToughArmor MB118VP-B supports 15-pin SATA power cables with locking latches. As a result, you'll never need to worry about cables unintentionally disconnecting from your enclosure. Once these cables are connected, they will lock and stay in place.
  • Exceptional Product Compatibility
    The MB118VP-B is compatible with motherboards, RAID/HBA cards, and M.2 adapters from major brands including Adaptec, Areca, Broadcom, HighPoint, Supermicro, and more. This compatibility gives you the freedom to choose from a wide range of hardware options, moving beyond the constraints of single-brand system configurations. For more information on product compatibility, click here.
  • Enhance Security with Our Lockable Drive Tray
    If your application demands added physical security to protect valuable data from theft, you can upgrade with the compatible lockable drive tray MB996TK-B for an instant security boost to your MB118VP-B. For bulk orders of MB118VP-B pre-equipped with lockable drive trays, reach out to our sales team at [email protected] (Minimum Order Quantity applies).
  • (Optional) M.2 NVMe SSD to U.2 NVMe SSD Adapter
    Converting your M.2 NVMe SSD into U.2 NVMe SSD with the EZConvert MB705M2P-B adapter offers tool-less SSD installation and comes with a large heatsink designed explicitly for high-speed M.2 NVMe SSDs. The MB705M2P-B uses a bridge connector to link the M.2 NVMe SSD, ensuring that the gold fingers of the M.2 NVMe SSD are protected from damage during insertion and removal. This makes it an ideal solution for users who frequently swap M.2 NVMe SSDs.
  • Wide Range of Compatibility
    EZ-Slide Micro Tray MB992TRAY-B offers effortless interchangeability among different ToughArmor models.
  • We offer a wide selection of similar products that uses the same rear connections. Simply click on the products below for additional details.

    Related Models:

    • MB206L-B Cable
    • MB302L-B Cable
  • Explore our range of compatible cables to simplify your setup process, eliminating the need for extensive research and ensuring a more straightforward experience.

    Compatible Drive Cables:

    • MB206L-B Cable
    • MB302L-B Cable
Customizable ICY DOCK Drive Enclosures: Tailored to Meet TAA &UL Certification Standards and More!
At ICY DOCK, we understand the paramount importance of adhering to various industry and safety standards. While our standard products are already crafted with the highest quality in mind, we also provide our customers with the option to customize ICY DOCK drive enclosures and mobile racks to meet their specific certification requirements. This includes standards such as TAA and UL to wide temperature tests.

Our dedicated team is fully prepared to adjust product materials and designs to ensure complete compliance. Furthermore, we offer comprehensive guidance to our clients throughout the certification process. Our goal is to not only meet precise specifications but also ensure that our products successfully pass stringent tests. Below, you'll find a detailed table listing all the optional certifications that can be tested with our customizable solutions.
Optional Certifications Available for ToughArmor MB118VP-B
TAA Trade Agreements Act Compliance
UL Safety Standard Certification
UL94 Flammability of Plastic Materials
FCC Federal Communications Commission Compliance
Wide Temperature MIL-STD-810H - Method 501.7 &502.7
Customizing ICY DOCK products for specific certifications involves fees for the creation of the certificates, including necessary testing. Please note that some certificates may require recurring fees to remain valid. For more details and inquiries,please contact us at [email protected]

Main Features
Supports 6x U.2/U.3 PCIe NVMe SSD, with a 7mm height
Designed to fit into any standard external 5.25" optical drive bay
Utilizes 3x slimSAS 8i (SFF-8654) to support 6x U.2/U.3 SSDs
Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
Supports Tri-mode controllers PCIe/NVMe pinout (Broadcom, Areca, and more)
Ruggedized full-metal enclosure that meets flammability requirements
Removable tray system for easy maintenance
Dual high-performance 40x20mm cooling fans
The Eagle-hook tray latch securely holds the drive tray inside the enclosure
EMI Grounding protects SSDs from electrical damage
Backed by an Industry-leading 5-year limited warranty against all defects
Complimentary support from professionally trained technical support agents

Specification
Model Number MB118VP-B
Color Black
Support Drive Size 2.5" (supports only 7mm height U.2/U.3 SSDs)
Compatible Drive Type U.2 / U.3
Number of Drives 6
Max Drive Height 9.5mm
Drive Bay 5.25" bay
Host Interface 3 x SlimSAS SFF-8654 8i, pin-out defined by SFF-9402 Rev 1.1
(Tri-mode HBA/RAID card compatible)
Power Input 2 x 15pin SATA power connector
Transfer Rate Up to 64Gbps (depending on SSD speed)
Support SSD Capacity No limitation
Drive Cooling 2 x 40x40x20mm fan
Structure / Material Full metal
Hot Plug Yes
Product Dimension (W x H x D) 146 x 41.3 x 150mm
Product Net Weight 867.7g
Package Gross Weight 967g
Drive Activity LED Indication Power : solid green ; Drive access : flashing green
Package Contents Device, user manual, drive id plugs, screws
SFF-8639 Connector Insertion Rate 10,000
Humidity 5%~65% RH
Operating Temperature 0C to 60C (32F to 140F)
Storage Temperature -35C to 70C (-31F to 158F)
Compliance CE, RoHS, REACH
Warranty 5 years limited warranty
