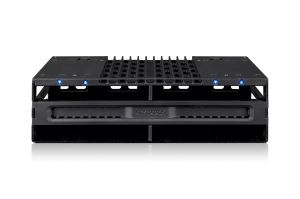

Icydock MB024SP-B flexiDock Tray-less 4x 2.5" SAS/SATA SSD/HDD Mobile Rack for 5.25" Bay

IMG 1 of 6
Our Price:
$72.40
or quickly purchase this product
Order In from SupplierShips from our warehouse in 1-3 business days
Part Number:
548882
(?) Brand:
Icydock Web Site
Manuf No:
MB024SP-B
MB024SPB
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
MB024SP-B, MB024SPB
  • The flexiDOCK MB024SP-B is a tray-less four-bay drive enclosure that allocates 2.5" SAS/SATA drives to the frontal 5.25" drive bay of any computer system for easy drive-swapping and accessibility. It supports four 2.5" SAS/SATA hard drives or solid-state drives up to 9.5mm height and utilizes the SATA III 6Gbps transfer speed.

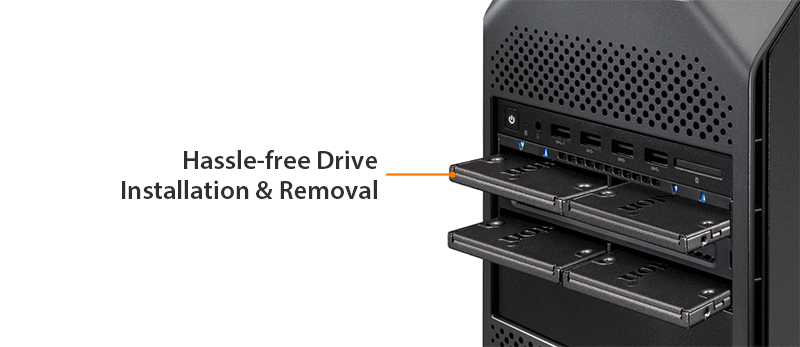

  • Tray-less &Tool-less Drive Swap
    With the simplistic tray-less docking style design, installing or removing the drives has never been more straightforward. Simply slide in 2.5" hard drives (HDDs) or solid-state drives (SSDs) to quickly access your data and safely ejecting by pulling the drive out manually.
  • Trim off the Fan, Going Stealth
    The exhaust fan is purposely removed on MB024SP-B to reduce any high pitch noise produced by the fan. It is designed to emit minimal sound interference and is suitable for any low acoustic required environment.
  • Additionally, by allowing additional free space in the rear of the unit, MB024SP-B is shorter in depth and can fit into most computer chassis where space constraint is critical.

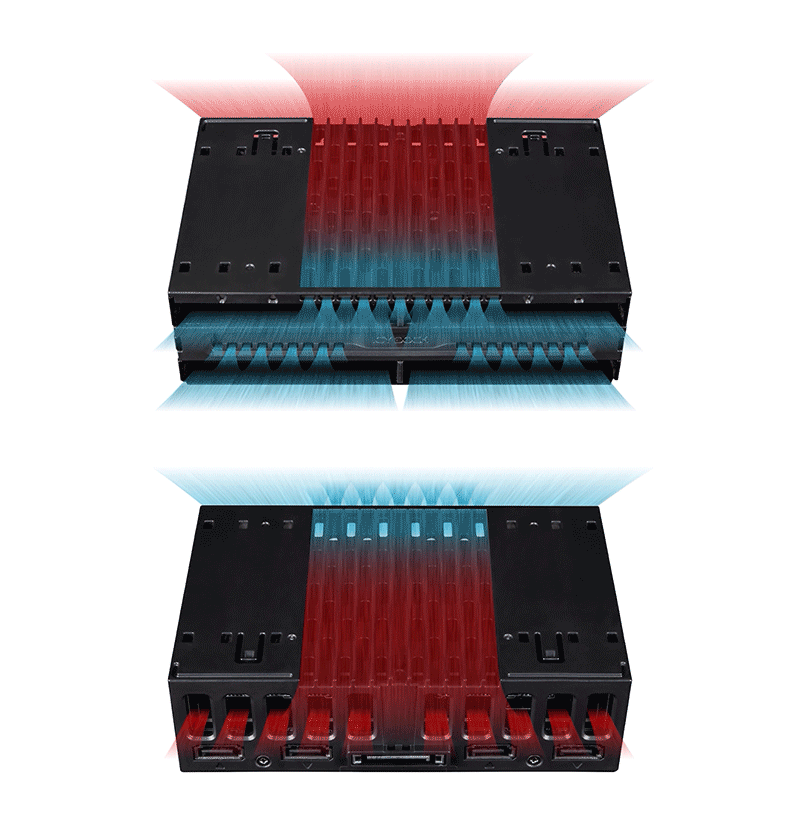

  • Maximum Passive Cooling Design
    More than 100 ventilation holes/cutouts are strategically placed throughout the enclosure and backplane for maximum passive cooling effect. In addition, the honeycomb air vents located at the front and rear of the device work perfectly with the computer's cooling fan, quickly remove trapped heat around the drives and keep your 2.5" drives running at optimal temperatures.
  • Pack with Features

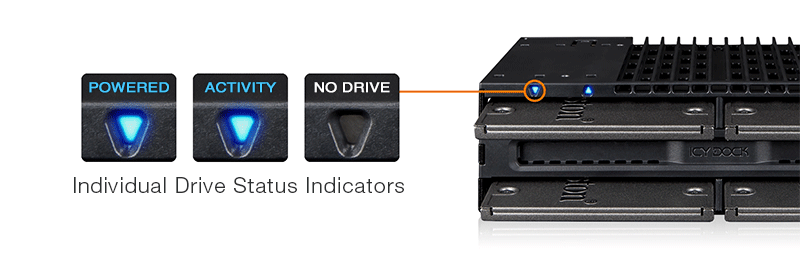

    The flexiDOCK MB024SP-B has four easy-to-read individual soft blue drive status LEDs to indicate the drive status - a solid blue light indicates a drive is inserted and has power, a flashing blue light indicates the drive is in use.
  • To ensure solid connectivity between the device and system, the flexiDOCK MB024SP-B supports both 7-pin SATA data and 15-pin SATA power cables with locking latches to avoid accidental disconnections. Once the cables are connected, they will lock into place.
  • The metal outer chassis provides a long lifespan and superior protection to the drives. In addition, the robust ABS plastic top, front, and interior structure offer excellent air ventilation and drive stability system without sacrificing strength.
  • Optional: M.2 SATA SSD to 2.5 Form Factor Adapter | EZConvert MB703M2P-B
    If you are looking to use M.2 SATA SSD with the flexiDOCK MB024SP-B, pair it with our EZConvert MB703M2P-B, M.2 SSD to 2.5" form factor adapter. It features a tool-less adjustable M.2 locker to secure your drives in place. Click here to visit the product page.
Main Features
Supports 4x 2.5" SAS/SATA HDDs/SSDs (up to 9.5mm drive height)
Install into any standard external 5.25" drive bay
Supports SATA 6Gbp/s transfer speeds &SAS up to 12Gbp/s (SAS host required)
Tray-less and door-less design for hot-swapping bare drives without tools or screws
Reduce cable clutter by using a single 15-pin SATA power connection to power four drives
Soft blue drive activity LED for each drive (Solid blue for power and flashing blue for drive activity)
Supports SATA 7-pin data and 15-pin power cables with a locking latch design
Industry-leading 3-year warranty against all defects
Active Power Technology (APT) - only powers up if there is a drive inserted into the drive bay
More than 100 ventilation holes are strategically placed throughout the enclosure for maximum passive cooling effect
Complimentary support from professionally trained technical support agents

Specification
Model Number MB024SP-B
Color Black
Support Drive Size 2.5" SSD/HDD
Compatible Drive Type SAS(Single Channel)/SATA SSD/HDD
Number of Drives 4
Max Drive Height 9.5mm
Drive Bay 1 x External 5.25" Drive Bay
Host Interface 4 x SATA 7 Pin
Power Input 1 x SATA 15 Pin
Transfer Rate SATA 3.0 Up to 6 Gbps / SAS 3.0 Up to 12 Gbps
Support SSD Capacity No limitation
Drive Cooling Metal heat dispersion with passive cooling
Structure / Material Metal with plastic
Product Dimension (W x H x L) 41.3 X 99.1 X 146mm
Product Net Weight 222.2g
Package Gross Weight 289.8g
Drive Activity LED Indication Drive power : solid blue; drive access: flashing blue
Package contents Device, user manual, screw
SATA Connector Insertion Rate 10,000
Humidity 5%~65% RH
Operating Temperature 0C to 60C (32F to 140F)
Storage Temperature -35C to 70C (-31F to 158F)
Compliance CE, RoHS, REACH
Warranty 3 years

No additional files, specification sheets, guides or documentation found for product.

Warranty: 3 year return to base

Full manufacturers warranty details are available at the manufacturers (Icydock) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
