All stock codes associated to this product
ER8822, 5190976, 0731304427933
| Features |
|---|
| Size (imperial) | 48.3 cm (19") |
| Rack capacity | 48U |
| Castor wheels | Yes |
| Maximum weight capacity (rolling) | 599.65 kg |
| Type | Freestanding rack |
| Side panels included | Yes |
| Maximum weight capacity | 1199.75 kg |
| Product colour | Black |
| Certification | EIA-310E, UL 2416, UL 60950-1 |
| Preassembled | Yes |
| Weight & dimensions |
|---|
| Package width | 1250 mm |
| Package depth | 850 mm |
| Package height | 2390 mm |
| Package weight | 159 kg |
| Mounting depth (max) | 104.1 cm |
| Mounting depth (min) | 24.2 cm |
| Width | 800 mm |
| Depth | 1200 mm |
| Height | 2260 mm |
| Weight | 150 kg |
| Size (imperial) | 48.3 cm (19") |
| Packaging data |
|---|
| Package width | 1250 mm |
| Package depth | 850 mm |
| Package height | 2390 mm |
| Package weight | 159 kg |
| Technical details |
|---|
| Harmonized System (HS) code | 85381000 |
| Total carbon footprint (kg of CO2e) | 482.45 |
| Rack capacity | 48U |
| Logistics data |
|---|
| Harmonized System (HS) code | 85381000 |

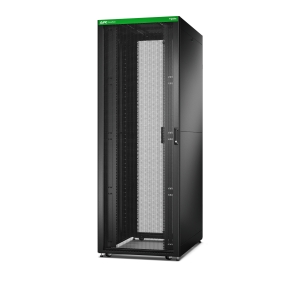

Easy Rack ER8822 is EIA-310 standard pre-assembled IT enclosure with essential features for fast and easy deployment in datacenter & server applications. ER8822 is deep & wide for high density converged IT, with 48U height (6U extra), ventilated doors with 81% perforation and load ratings static 1200kg & dynamic 600kg. This rack comes in 800mm width & 1200mm depth, with Roof, side panels, keys, levelling feet, casters, mounting hardware, PDU mounting brackets and without bottom. This rack design provides enough rack mounting space for even the deepest devices and vertical mounting accessories with 48U height to maximize u-space per footprint. This rack cabinet ships fully assembled for faster installation or choose to ship unassembled for storage or transit in tight spaces and prefer to assemble onsite. This has integrated vertical 1U mounting spaces adjacent the enclosures standard EIA-310 equipment mounting u-spaces that can be removed and replaced with 1U accessories. This is Wide, Deep and Tall Universal IT enclosure with increased enclosure width for more cable management options in denser server and networking applications. Easy Racks are easy to choose, install and accessorize with cooling, cable management & PDUs, including recently launched feature-rich, Easy Rack PDU series. This is compatible with Schneider's EcoStruxure IT, allowing remote monitoring of on-premise and distributed IT infrastructure from anywhere, at any time, via any device.
