All stock codes associated to this product
ST24000VE002, 8719706436878
| Hard drive |
|---|
| Component for | Surveillance system |
| HDD size | 3.5" |
| HDD capacity | 24 TB |
| HDD speed | 7200 RPM |
| Interface | Serial ATA III |
| Start/stop cycles | 600000 |
| HDD sustained transfer rate | 260 MiB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Mean time between failures (MTBF) | 2000000 h |
| Storage drive buffer size | 512 MB |
| Features |
|---|
| Type | HDD |
| Component for | Surveillance system |
| HDD size | 3.5" |
| HDD capacity | 24 TB |
| HDD speed | 7200 RPM |
| Interface | Serial ATA III |
| Start/stop cycles | 600000 |
| HDD sustained transfer rate | 260 MiB/s |
| HDD interface transfer rate | 6 Gbit/s |
| Mean time between failures (MTBF) | 2000000 h |
| Storage drive buffer size | 512 MB |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^15 bits read |
| Rotational Vibration (RV) sensors | Yes |
| Number of AI channels | 32 |
| Maximum number of cameras supported | 64 |
| Power |
|---|
| Power consumption (typical) | 7.72 W |
| Power consumption (standby) | 1 W |
| Power consumption (idle) | 3.5 W |
| Operating voltage | 5 / 12 V |
| Start-up current | 2 A |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 65 °C |
| Technical details |
|---|
| Products per pallet layer | 8 pc(s) |
| Harmonized System (HS) code | 84717050 |
| Weight & dimensions |
|---|
| Width | 101.8 mm |
| Height | 26.1 mm |
| Depth | 147 mm |
| Weight | 680 g |
| Logistics data |
|---|
| Master (outer) cases per pallet | 40 pc(s) |
| Products per master (outer) case | 20 pc(s) |
| Products per pallet layer | 8 pc(s) |
| Harmonized System (HS) code | 84717050 |
| Other features |
|---|
| Interface | Serial ATA III |
| Operating voltage | 5 / 12 V |
| Master (outer) cases per pallet | 40 pc(s) |
| Maximum number of cameras supported | 64 |

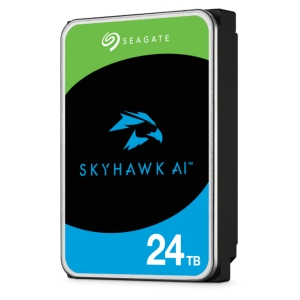

A video-optimised drive, SkyHawk AI is designed for NVRs with artificial intelligence for edge applications.
SkyHawk AIDesigned for AI video analytics, SkyHawk AI supports up to 64 HD cameras and 32 additional AI streams while offering capacities up to 20 TB. It delivers zero dropped frames with ImagePerfect AI and has enterprise-class workload rates at 550 TB/yr for high reliability.
SkyHawk24×7 workloads can leverage up to 8 TB with drives designed for DVR and NVR systems. SkyHawk video drives are equipped with enhanced ImagePerfect™ and SkyHawk Health Management to help you sail through your toughest challenges.
Drive Health and Data RecoveryWhen integrated into compatible NVR systems, these drives provide overall system reliability increases due to SkyHawk Health Management (SHM).1
In addition, the SkyHawk drives include a robust three-year Rescue Data Recovery Services plan.
