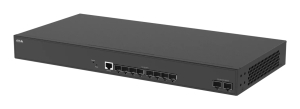

AXIS D8308 L2/L3 Black, 8xSFP+/2xSFP28, 32K MAC, 260 Gbit/s, 193.44 Mpps, 100-250V, 50/60Hz

IMG 1 of 1
Our Price:
$2,220.40
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
550635
(?) Brand:
AXIS
Manuf No:
03063-006
03063006
Shipping Weight:
2.58 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
03063-006, 03063006

Axis D8308 L2/L3 Black

Manufacturer: Axis
Category: Networking
Sub-Category: Network Switches
SKU: 03063-006
EAN:

Description

Scalable and flexible

With AXIS D8308 Fiber Aggregation Switch you can connect multiple Axis devices using fiber midspans over long distances. It also enables easy expansion by simply adding more fiber or network switches.

For long distance installations

Long-distance installations often require fiber optic cables to connect different sites because of fiber's ability to transmit data over much greater distances with minimal signal loss. AXIS D8308 support fiber optic connections, making it ideal for linking remote locations within a network.

Easy to install and configure

AXIS D8308 Fiber Aggregation Switch is easy to install using standard Axis tools as AXIS IP Utility and AXIS Device Manager. It comes with an individual password, easy to use setup wizard, and a comprehensive set of configuration tools. For instance, an integrated DHCP server for automatic assignment of IP addresses. It also allows for even more advanced network configuration such as VLAN, QoS, Port Security, and Spanning tree to further optimize the total solution.

Specifications

Management features
ARP inspectionYes
Switch layerL2/L3
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports typeNo
Console portRJ-45
Fiber ports quantity10
Fiber optic connectorSFP+, SFP28
SFP28 ports quantity2
Network
Networking standardsIEEE 802.1x
VLAN supportYes
Broadcast storm controlYes
Optical fiber
Fiber ethernet cabling technology10GBASE-LR, 10GBASE-SR, 25GBASE-LR, 25GBASE-SR
Fiber optic connectorSFP+, SFP28
Data transmission
MAC address table32000 entries
Switching capacity260 Gbit/s
Throughput193.44 Mpps
Static routeYes
Security
Loop protectionYes
Security algorithmsHTTPS, TLS
Access Control List (ACL)Yes
Password protectionYes
Protocols
Supported network protocolsIPv4, IPv6, HTTP, HTTPS, QoS Layer 3 DiffServ, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3, DNS/DNSv6, NTP, TCP, UDP, IGMPv1/v2/v3, ICMP, DHCP, ARP, SSH, CDP, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RIP v1/v2, OSPF v2/v3
Routing protocolsOSPF, RIP
IP Source Guard (IPSG)Yes
Design
Rack mountingYes
StackableYes
Product colourBlack
Housing materialSteel
CertificationCSA, UL/cUL, CE, VCCI, RCM, ICES, FCC, TAA, CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368.1:2022
Power
Power protection featuresSurge protection
AC input voltage100 - 250 V
AC input frequency50/60 Hz
Power sourceAC
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Power protection featuresSurge protection
Operational conditions
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-20 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)5 - 95%
Virtual LAN features
VLAN supportYes
Weight & dimensions
Width442 mm
Depth211.1 mm
Height44 mm
Weight2.58 kg
Packaging content
ManualYes
Cables includedAC
Sustainability
Doesn't containBFR, CFR, PVC
Performance
StackableYes
Technical details
Doesn't containBFR, CFR, PVC
Compliance certificatesREACH, RoHS
Certificates
CertificationCSA, UL/cUL, CE, VCCI, RCM, ICES, FCC, TAA, CISPR 32 Class A, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, RCM AS/NZS CISPR 32 Class A, ICES(A)/NMB(A), VCCI Class A, FCC Part 15 Subpart B Class A, CAN/CSA C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, RCM AS/NZS 62368.1:2022
Compliance certificatesREACH, RoHS
Packaging data
ManualYes
Cables includedAC
