All stock codes associated to this product
SG3452XMPP, NWTLSG3452XMPP, NWTL-SG3452XMPP, TL99313, 8885020620870
| Management features |
|---|
| Reset button | Yes |
| ARP inspection | Yes |
| Switch layer | L2+ |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces |
|---|
| SFP+ module slots quantity | 4 |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Network |
|---|
| Networking standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| 10G support | Yes |
| IGMP snooping | Yes |
| Data transmission |
|---|
| Jumbo frames | 9000 |
| MAC address table | 16000 entries |
| Switching capacity | 176 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Packet buffer memory | 12 MB |
| Forwarding rate | 130.9 Mpps |
| Security |
|---|
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | Auto VLAN, Guest VLAN |
| Static port security | Yes |
| SSH/SSL support | Yes |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP relay, DHCP server |
| Multicast features |
|---|
| Multicast support | Yes |
| Design |
|---|
| Reset button | Yes |
| Rack mounting | Yes |
| Product colour | Black |
| Form factor | 1U |
| LED indicators | Yes |
| Number of fans | 3 fan(s) |
| Certification | CE, FCC, RoHS |
| Power |
|---|
| Power consumption (max) | 635.7 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) |
|---|
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Total Power over Ethernet (PoE) budget | 750 W |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 2169.2 BTU/h |
| Virtual LAN features |
|---|
| VLAN support | Yes |
| Weight & dimensions |
|---|
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Packaging content |
|---|
| Quick start guide | Yes |
| Cables included | AC |
| Performance |
|---|
| Packet buffer memory | 12 MB |
| Certificates |
|---|
| Certification | CE, FCC, RoHS |
| Packaging data |
|---|
| Quick start guide | Yes |
| Cables included | AC |

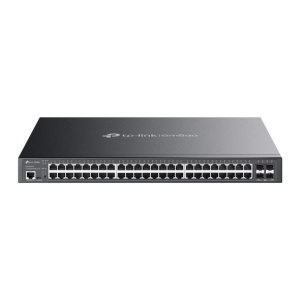

TP-Link SG3452XMPP Omada 48-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 40-Port PoE+ & 8-Port PoE++
• 4× 10 Gbps SFP+ slots
• 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
• 40× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
• 750 W total PoE budget*
• Centralised cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design
Warranty Period: 5-Year
