All stock codes associated to this product
MC420L, NWTLMC420L, NWTL-MC420L, TL99002, 0810142822916
| Network |
|---|
| Fiber optic connector | SFP+ |
| Data transfer rate | 10000 Mbit/s |
| Auto-negotiation | Yes |
| Copper ethernet cabling technology | 2.5GBASE-T, 10GBASE-T, 1000BASE-T |
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3x, IEEE 802.3z |
| Duplex system | Full, Half |
| Performance |
|---|
| Auto-negotiation | Yes |
| Maximum transfer distance | 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Ports & interfaces |
|---|
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP+ |
| Design |
|---|
| Internal | No |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Power |
|---|
| Power consumption (max) | 4.12 W |
| Technical details |
|---|
| Data transfer rate | 10000 Mbit/s |
| Compliance certificates | RoHS, UL |
| Weight & dimensions |
|---|
| Width | 94.5 mm |
| Depth | 73 mm |
| Height | 27 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging content |
|---|
| AC adapter included | Yes |
| Manual | Yes |

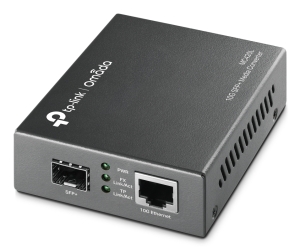

What This Product DoesThe MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.
MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.
