All stock codes associated to this product
SX3832, NWTLSX3832, NWTL-SX3832, TL93061, 8885020622652
Management features |
---|
ARP inspection | Yes |
Switch layer | L2/L2+ |
Switch type | Managed |
Web-based management | Yes |
System event log | Yes |
Quality of Service (QoS) support | Yes |
Multicast support | Yes |
Configuring Location Settings (CLI) | Yes |
Cloud-managed | Yes |
Ports & interfaces |
---|
SFP+ module slots quantity | 8 |
Basic switching RJ-45 Ethernet ports quantity | 24 |
Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
Console port | RJ-45/USB Type-C |
USB Type-C ports quantity | 1 |
Network |
---|
Networking standards | IEEE 802.3az |
VLAN support | Yes |
Spanning tree protocol | Yes |
Rate limiting | Yes |
Port mirroring | Yes |
IP routing | Yes |
Flow control support | Yes |
Ethernet LAN data rates | 10,100 Mbit/s |
Broadcast storm control | Yes |
10G support | Yes |
Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
IGMP snooping | Yes |
Data transmission |
---|
Jumbo frames | 9000 |
MAC address table | 32000 entries |
Switching capacity | 640 Gbit/s |
Jumbo frames support | Yes |
Packet buffer memory | 24 MB |
Static route | Yes |
Forwarding rate | 240 Mpps |
Security |
---|
Loop protection | Yes |
Authentication | Auto VLAN, MAC-based authentication, Port-based authentication |
SSH/SSL support | Yes |
IGMP snooping | Yes |
Access Control List (ACL) | Yes |
Authentication type | AAA, RADIUS, TACACS+ |
DHCP features | DHCP relay, DHCP server, DHCP snooping, DHCPv6 snooping |
Multicast features |
---|
Multicast support | Yes |
Design |
---|
Rack mounting | Yes |
Stackable | Yes |
Product colour | Black |
Form factor | 1U |
LED indicators | Yes |
Number of fans | 2 fan(s) |
Power |
---|
Power consumption (max) | 106.5 W |
Power supply included | Yes |
AC input voltage | 100 - 240 V |
AC input frequency | 50/60 Hz |
Power source | AC |
Power over Ethernet (PoE) |
---|
Power over Ethernet (PoE) | No |
Operational conditions |
---|
Operating temperature (T-T) | -5 - 50 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Heat dissipation | 363.23 BTU/h |
Virtual LAN features |
---|
VLAN support | Yes |
Virtual LAN features | MAC address-based VLAN, Multicast VLAN, Private VLAN, Voice VLAN |
Weight & dimensions |
---|
Width | 440 mm |
Depth | 220 mm |
Height | 44 mm |
Packaging content |
---|
Rack mount kit | Yes |
Quick start guide | Yes |
Cables included | AC, LAN (RJ-45) |
Performance |
---|
Stackable | Yes |
Packet buffer memory | 24 MB |
Packaging data |
---|
Rack mount kit | Yes |
Quick start guide | Yes |
Cables included | AC, LAN (RJ-45) |
Other features |
---|
Ethernet LAN data rates | 10,100 Mbit/s |

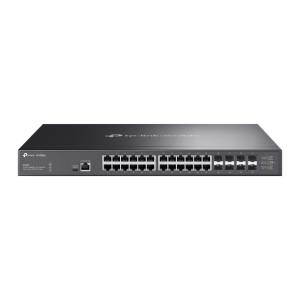

TP-Link SX3832 Omada 24-Port 10GBASE-T L2+ Managed Switch with 8 10GE SFP+ Slots
• 24× 1/2.5/5/10 Gbps RJ45 ports
• 8× 1/10 Gbps SFP+ slots
• 640 Gbps switching capacity
• Centralised cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology
• Durable metal casing and rack-mountable design
Warranty Period: 5-Year
