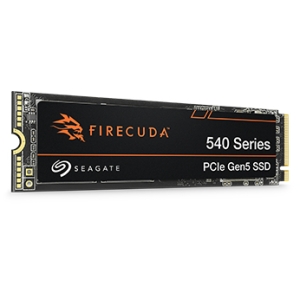

ZP2000GM3A004 | Seagate FireCuda 540 2 TB M.2 PCI Express 5.0 NVMe 3D TLC

Performance
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Interface	PCI Express 5.0
Component for	Server/workstation
SSD capacity	2 TB
NVMe	Yes
NVMe version	2.0
Sequential read speed (ATTO)	10000 MB/s
Sequential write speed (ATTO)	10000 MB/s
Memory type	3D TLC
Random read (4KB)	1490000 IOPS
Random write (4KB)	1500000 IOPS
S.M.A.R.T. support	Yes
TRIM support	Yes
Mean time between failures (MTBF)	1800000 h
Features
Interface	PCI Express 5.0
Component for	Server/workstation
SSD capacity	2 TB
NVMe	Yes
NVMe version	2.0
Sequential read speed (ATTO)	10000 MB/s
Sequential write speed (ATTO)	10000 MB/s
Memory type	3D TLC
Random read (4KB)	1490000 IOPS
Random write (4KB)	1500000 IOPS
S.M.A.R.T. support	Yes
TRIM support	Yes
Mean time between failures (MTBF)	1800000 h
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
SSD form factor	M.2
Power
Power consumption (average)	11 W
Power consumption (idle)	0.144 W
Average power consumption (write)	11.5 W
Average power consumption (read)	10.5 W
Design
SSD form factor	M.2
Weight & dimensions
Width	22.1 mm
Depth	80.2 mm
Height	3.58 mm
Weight	7.4 g
Package width	109 mm
Package depth	24 mm
Package height	155 mm
Package weight	70 g
Packaging data
Package width	109 mm
Package depth	24 mm
Package height	155 mm
Package weight	70 g
Master (outer) case width	153 mm
Master (outer) case length	292 mm
Master (outer) case height	140 mm
Master (outer) case gross weight	970 g
Products per master (outer) case	10 pc(s)
System requirements
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Operational conditions
Operating temperature (T-T)	0 - 70  Â°C
Storage temperature (T-T)	-40 - 85  Â°C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 93%
Non-operating shock	1500 G
Non-operating vibration	1.52 G
Technical details
Interface	PCI Express 5.0
Operating temperature (T-T)	0 - 70  Â°C
Storage temperature (T-T)	-40 - 85  Â°C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 93%
Non-operating shock	1500 G
Non-operating vibration	1.52 G
SSD form factor	M.2
Sustainability compliance	Yes
Warranty period	5 year(s)
Compliance certificates	RoHS
Software
Windows operating systems supported	Windows 10, Windows 11
Linux operating systems supported	Yes
Sustainability
Sustainability compliance	Yes
Other features
Warranty period	5 year(s)
Compliance certificates	RoHS
Layers per pallet	7 pc(s)
Master (outer) cases per pallet	168 pc(s)
Logistics data
Master (outer) case width	153 mm
Master (outer) case length	292 mm
Master (outer) case height	140 mm
Master (outer) case gross weight	970 g
Products per master (outer) case	10 pc(s)
Layers per pallet	7 pc(s)
Master (outer) cases per pallet	168 pc(s)

---

With speeds up to 10,000 MB/s, this PCIe Gen5 takes no-prisoners, toppling Gen4 speeds by 50% and going 17 times faster than SATA SSDs. DirectStorage support brings faster load times to games and applications. Plus, handles upwards of 2000 TB total bytes written, perfect for powering through constant abuse. This SSD isn’t for the faint of heart.

FireCuda 540 is also compatible with PS5™ systems when combined with effective heat dissipation and an added cooling structure – such as a heatsink or a heat transfer sheet.


Waste No Time
Performance has a new name – featuring speeds up to 10,000 MB/s means the full power of PCIe Gen5 speeds are yours to wield.


Full Tilt Speeds
Up to 10,000 MB/s means the full power of PCIe Gen5 speeds are yours to wield.


Built to Last
Up to 2,000 TB TBW (total bytes written) means you can write and delete 90% of the drive capacity, every day, for five years.


Faster. Faster. Faster.
Transfer speeds up to 50% faster than PCIe Gen4 NVMe SSDs and up to 17× faster than SATA SSDs.


Storage Expansion for PS5
The FireCuda 540 is compatible with PS5™ consoles and meets PS5 specs on performance and dimensions. Plus, the FireCuda with heatsink combo makes for an easy drop-in expansion solution with no additional parts needed.

Visit our article on How to Install a M.2 SSD into a PS5 for more information and step-by-step instructions.


Rescue Data Recovery Services
We’ve Got Your Back
When the unexpected happens – like water damage or natural disaster – Rescue Services help you defend against data loss and retrieval costs so you can rest easier.


DiscWizard and SeaTools – Making Drive Management Easier
Seagate makes it easy to add new drives to your computer and monitor their health and performance with the free DiscWizard™ and SeaTools™ software. Easily clone your current drive to your new Seagate drive, create and format partitions, transfer data, and back up data with DiscWizard – and then seamlessly monitor drive health, performance, and firmware updates using SeaTools.
