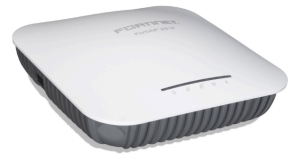

Fortinet FortiAP 231F 1201 Mbit/s White, 802.11ax, 5GHz/2.4GHz, 3 Antennas, 2x2 MU-MIMO, 1201 Mbps, Region Code: N

IMG 1 of 1
Our Price:
$643.10
RRP:
$696.00
You Save:
$52.90
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days
Part Number:
552299
(?) Brand:
Fortinet
Manuf No:
FAP-231F-N
FAP231FN
Shipping Weight:
0.95 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
FAP-231F-N, 5063117, FAP231FN, 0842382193044

Fortinet FortiAP 231F 1201 Mbit/s White

Manufacturer: FORTINET
Category: Networking
Sub-Category: Wireless Access Points
SKU: FAP-231F-N
EAN: 0842382193044

Description

FortiAP 231F
This enterprise class Wi-Fi 6 indoor AP provides three radios as well as features such as OFDMA and dual 1 Gbps Ethernet ports. The AP can provide 24/7 scanning across both bands while still providing access on both the 2.4 GHz and 5 GHz bands. The integrated BLE radio can be used for beacons and locationing applications.

Specifications

Performance
2.4 GHzYes
5 GHzYes
Maximum data transfer rate1201 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Reset buttonYes
Networking standardsIEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3ad, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11v, IEEE 802.3af, IEEE 802.11w, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.3at, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q, IEEE 802.3az, IEEE 802.11i, IEEE 802.1x
Modulation64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK
Channel bandwidth40 MHz
CertificationCE, FCC, IC
MIMO typeMulti User MIMO
MIMOYes
Features
2.4 GHzYes
5 GHzYes
Maximum data transfer rate1201 Mbit/s
Ethernet LAN data rates10,100,1000 Mbit/s
Frequency band2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Networking standardsIEEE 802.11j, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.3ad, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11v, IEEE 802.3af, IEEE 802.11w, IEEE 802.11b, IEEE 802.11d, IEEE 802.11e, IEEE 802.3at, IEEE 802.11g, IEEE 802.11h, IEEE 802.1Q, IEEE 802.3az, IEEE 802.11i, IEEE 802.1x
Modulation64-QAM, 256-QAM, 1024-QAM, BPSK, QPSK
Channel bandwidth40 MHz
Tunnel forwardingYes
MIMO typeMulti User MIMO
MIMOYes
Maximum data transfer rate (2.4 GHz)574 Mbit/s
Maximum data transfer rate (5 GHz)1201 Mbit/s
Security
Number of SSID supported16
Security algorithmsEAP-AKA, EAP-FAST, EAP-GTC, EAP-SIM, EAP-TLS, EAP-TTLS, MSCHAPv2, PEAP, WPA, WPA2, WPA3
Ports & interfaces
RS-232 interfaceYes
USB 2.0 ports quantity1
Ethernet LAN (RJ-45) ports2
Power
Power consumption (typical)17 W
Design
PlacementCeiling, Wall
Reset buttonYes
LED indicatorsYes
Product colourWhite
CertificationCE, FCC, IC
Antenna
Antenna typeInternal
Antennas quantity3
Antenna gain level (max)5.5 dBi
Technical details
Compliance certificatesRoHS
Software
Tunnel forwardingYes
Weight & dimensions
Width153.2 mm
Depth153.2 mm
Height53 mm
Weight543 g
Package weight950 g
Packaging data
Package weight950 g
Operational conditions
Operating relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-30 - 70 °C
Logistics data
Quantity per pack1 pc(s)
