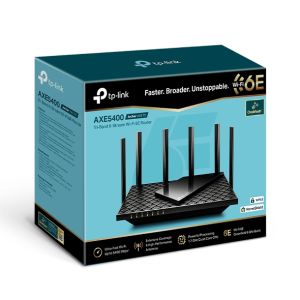

ARCHER AXE75 | TP-Link Archer AXE5400 Tri-Band Gigabit Wi-Fi 6E Router, 6/5/2.4

Ethernet LAN features
Ethernet WAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
Ethernet LAN data rates	2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
DSL features
DSL WAN	No
Mobile network
SIM card slot	No
3G/4G USB modem compatibility	No
Network
Wake-on-LAN ready	Yes
Network address translation (NAT)	Yes
Guest access	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN	Yes
VPN support	OpenVPN Server PPTP VPN Server L2TP VPN Server
Port forwarding	Yes
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n
Ethernet LAN data rates	2500 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Port triggering	Yes
Number of guest networks (5 GHz)	1
Number of guest networks (2.4 GHz)	1
Support Samba (storage)	Yes
Built-in FTP server	Yes
VPN server	OpenVPN Server
Media server	Yes
VPN Passthrough	Yes
Static route	No
Dynamic DNS (DDNS)	Yes
Protocols
DMZ support	Yes
Universal Plug and Play (UPnP)	Yes
Supported network protocols	IPv4, IPv6
DHCP server	Yes
DHCP client	Yes
Management features
Universal Plug and Play (UPnP)	Yes
WPS push button	Yes
Web-based management	Yes
Wake-on-LAN ready	Yes
Reset button	Yes
Quality of Service (QoS) support	Yes
Wireless statistics	Yes
Security
VPN support	OpenVPN Server PPTP VPN Server L2TP VPN Server
URL filtering	Yes
Security algorithms	WPA, WPA-Enterprise, WPA2, WPA3
Network address translation (NAT)	Yes
MAC address filtering	Yes
IP address filtering	Yes
Guest access	Yes
Firewall security	SPI Firewall
Firewall	Yes
DoS attack prevention	Yes
DMZ support	Yes
Access Control List (ACL)	Yes
DDoS protection	Yes
Performance
Processor frequency	1700 MHz
Processor cores	4
Firmware upgradeable	Yes
Built-in processor	Yes
Weight & dimensions
Package width	328 mm
Package weight	1.53 kg
Package height	120 mm
Package depth	265 mm
Width	272.5 mm
Height	49.2 mm
Depth	147.2 mm
Packaging content
Number of products included	1 pc(s)
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
WAN connection
Ethernet WAN	Yes
DSL WAN	No
SIM card slot	No
3G/4G USB modem compatibility	No
WAN connection type	RJ-45
Wireless LAN features
Top Wi-Fi standard	Wi-Fi 6E (802.11ax)
WLAN data transfer rate (max)	5400 Mbit/s
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
WLAN data transfer rate (first band)	574 Mbit/s
WLAN data transfer rate (second band)	2402 Mbit/s
WLAN data transfer rate (third band)	2402 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ports & interfaces
USB port	Yes
Ethernet LAN (RJ-45) ports	5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Design
Product type	Tabletop router
Wall mountable	Yes
On/off switch	Yes
LED indicators	Power, WAN, WLAN
Product colour	Black
Certificates
Compliance certificates	Federal Communications Commission (FCC), RoHS
Sustainability
Sustainability compliance	Yes
Antenna
Antenna design	External
Detachable antenna(s)	Yes
Antennas quantity	6
Transmit power	FCC: ≤29dBm (2.4 GHz), ≤28dBm (5 GHz), ≤22dBm (6 GHz) CE: ≤17dBm (2.4 GHz), ≤27dBm (5 GHz), ≤20dBm (6 GHz)
Features
Processor frequency	1700 MHz
Processor cores	4
Firmware upgradeable	Yes
Built-in processor	Yes
Harmonized System (HS) code	85176990
Power
Power source type	DC
Output voltage	12 V
Output current	2.5 A
Operational conditions
Operating temperature (T-T)	0 - 40  Â°C
Operating relative humidity (H-H)	10 - 90%
Packaging data
Package width	328 mm
Package weight	1.53 kg
Package height	120 mm
Package depth	265 mm
Cables included	LAN (RJ-45)
AC adapter included	Yes
Quick installation guide	Yes
Number of products included	1 pc(s)
Technical details
Sustainability compliance	Yes
Compliance certificates	Federal Communications Commission (FCC), RoHS
Logistics data
Harmonized System (HS) code	85176990

---

Reaching New
Peaks of Performance


WiFi 6E: A Freer and Faster Future
WiFi 6E introduces the brand new 6 GHz band without any overlap or interference from other bands and older devices. This means a congestion-free frequency that offers more bandwidth, faster speed, and lower latency.


Maximize All Your Device Speeds
Archer AXE75 provides WiFi speeds up to 5400 Mbps, enabling your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.


More RAM, Better Processing
With an advanced chipset and high memory, experience fast connections with minimal latency even under heavy loads. Every click and tap on your laptop or phone responds quicker.


Connect More Stay Fast
The number of IoT devices today creates greater demands on home WiFi. Archer AXE75 future-proofs your home network with a higher capacity of up to 200+ devices. OFDMA and other advanced tech cut down the clutter throughout your frequency bands, eliminating latency and jitter.


WiFi Coverage Throughout Your Home
6× high-performance antennas boost WiFi signals throughout your home. Beamforming technology detects devices and concentrates signals towards them, especially to previously hard-to-reach areas.


USB 3.0
Easily share files between connected devices with an external drive. Or create your own personal cloud storage for simple, secure access from anywhere.


TP-Link OneMesh
Flexibly Create Whole Home WiFi with Archer AXE75
OneMesh is a simple way to form a mesh network with a single WiFi name for seamless whole home coverage. Just connect a OneMesh range extender to a OneMesh router. No more searching for a stable connection.


TP-Link HomeShield
Advanced Security for Your Everyday Devices
With TP-Link HomeShield, enjoy advanced secuirty features delivering a safe environment that protects your family and network's data and privacy.


WPA3: Stronger Security for Your Network
The latest WiFi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in WiFi password safety and enhanced protection against brute-force attacks combine to safeguard your home network.


Easy Setup and Use
Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AXE75 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.


Protect Your Children
Block inappropriate content for your children, and customize a time range for better online habits.


New Connection Notification
You will be notified by your phone when new devices connect. Kick off any suspicious connections and block them. It’s as simple as that.


Easy Firmware Upgrade
Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.
