All stock codes associated to this product
C9247A, 9321758126394

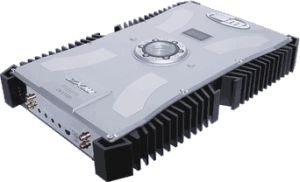

Capable of producing a MASSIVE 1300W into 4O bridged at just 0.035% THD, this monster amplifier is for serious car audio enthusiasts! In stereo mode it will deliver a whopping 2 x 650W RMS into 2O. As well as delivering awesome performance, it also looks sensational with a illuminated blue logo, LCD voltage readout and lashings of polished chrome.
The line level input has a switchable low pass pass filter and a +12dB bass enhance switch to boost the bottom end. The low-pass filter is adjustable from 50Hz to 250Hz for running dedicated subwoofers.
The speaker outputs may be configured in stereo or mono bridged.
It features soft start, overload, short circuit and thermal protection.
All connections are gold plated.
Amplifier Information:
|
- 2/1 Channel PWM Power MOSFET
- Regulated PWM Power Supply
- On Board Electronic Protection Circuitry
- 3 Piece Chromed Stainless Steel Aluminium Cast Heatsink
4 Ohms Continuous Power Output (14.4V): 325W x 2
2 Ohms Continuous Power Output (14.4V): 650W x 2
4 Ohms Bridged Continuous Output (14.4V): 1300W x 1
4 Ohms Max Bridged Output (14.4V): 2600W x 1
Frequency Response: +1/-1 dB @ 5Hz-50KHz
Low Pass Filter: 50Hz-250Hz (Variable)
Bass Boost: 0/+12dB
Stereo Separation: >100dB
Damping Factor: 200
Signal to Noise Ratio: >100dB
|
