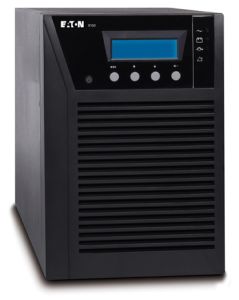

EATON PW9130G700T-XLAU 9130 Online UPS - 700VA/630W
  • Aust. 10A Output(4), IEC-320-C14 Input(1), TWR

IMG 1 of 1
No Longer Available
Part Number:
120578
(?) Brand:
EATON Web Site
Manuf No:
PW9130G700T-XLAU
PW9130G700TXLAU
Shipping Weight:
15 KG (Includes product packaging)
Estimate Shipping
Details Files Finance Images & Video
All stock codes associated to this product
PW9130G700TXLAU, PW9130G700T-XLAU, PW87512, 743172033147, GF294A1081

Eaton PW9130G700T-XLAU 9130 Online UPS - 700VA/630W

The Eaton 9130 UPS delivers online power quality and scalable battery runtimes for servers, voice and data networks, storage systems and other IT equipment. With an efficiency rating of 95% in online double conversion and 98% in high efficiency mode the 9130 UPS cuts energy costs while significantly extending battery service life with ABM technology. The 9130 UPS also has a bright LCD user interface to simplify monitoring.

Specifications

General
Topology Online (Double Conversion)
Configuration Tower
Part Number PW9130G700T-XLAU
Color Black
Rating (VA/Watts) 700/630
Diagnostics Full system self-test
UPS Bypass Automatic bypass
Dimensions (H x W x D, mm) 230 x 160 x350
Weight (kg) 12.2
Remote Emergency Power off (REPO) Emergency shutdown control through the REPO port
Efficiency 94% in high-efficiency mode; 90% in online mode
Electrical Input
Connection
(1) IEC-320-C14
Input Cord Schuko 10A to IEC 320-10A
Input Voltage Range 180-276 Vac (with load PF of 0.7)
Nominal Voltage 220240V
Frequency 50/60 Hz
Frequency Range 4565 Hz
Nominal Current 3.0A @230V
Breaker Ratings 10A
Electrical Output
Output Receptacles
(4) Aust. 10A
On Utility Voltage Regulation 3% of nominal
On Battery Voltage Regulation 3% of nominal
Frequency Regulation 3% Hz online
Load Crest Factor 3 to 1
Battery
Battery Description VRLA 12V/9 Ah (internal and External)
Battery Type Replaceable maintenance free sealed lead acid
Battery Replacement Hot-swappable internal batteries
Start On Battery Allows start of UPS without utility input
Communications
User Interface Graphical LCD with blue backlight and text in English, French, German, Russian and Spanish
LEDs Four status-indicating LEDs
Communication Ports RS-232 and USB HID port as standard
Relay Output Common alarm standard
Communications Card Slots Optional SNMP/Web card for monitoring in SNMP-based networks, monitoring through Web browser interface. Relay card for integration to industrial environment and BMS, remote shutdown for IBM AS/400 systems
Environmental & Standards
Heat Dissipation (BTU) Line: 350, Bat: 554
Audible Noise <44 dB
Operating Temperature 0C to +40C
Performance - Safety - EMC CE (per IEC/EN62040-2: Emissions, Category C1; Immunity, Category C2), GS
Storage Temperature -20C to +40C with batteries and -25C to +55C without batteries
Relative Humidity 590% non-condensing

No additional files, specification sheets, guides or documentation found for product.

Warranty: 2-year Manufact.

Full manufacturers warranty details are available at the manufacturers (EATON) web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
