This family of unique CF-IDE Hard Drive Adapters is designed to enable one or two Compact Flash (CFI/II) media to be used as direct replacement for the 2.5" IDE hard drive. As a result, any equipment, such as Notebook computer, that uses a 2.5" IDE hard drive can be easily converted to use the low power and shock resistant CF media. Once installed, the CF appears as an ordinary hard drive to any OS and can be configured as a boot device. The Dual CF-IDE Hard Drive Adapter contains a second CF slot for the slave position of the IDE channel, allowing increased storage capacity with the same low power consumption and solid state benefits of the CF card.

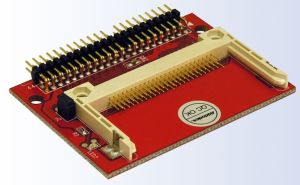

CF Hard Drive Adapter (single slot)
model: AD44MIDECF |

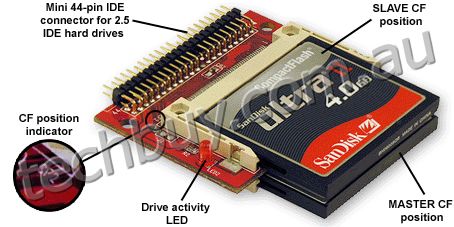

Dual CF-IDE Adapter (2 slots)
model: AD44MIDE2CF |
 |
|

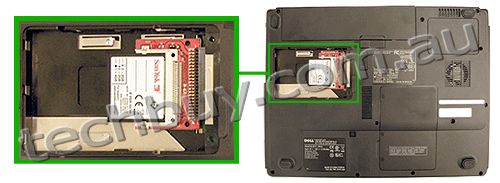

| Illustration of replacing the hard drive with a CF Adapter in a Notebook |
| Locate 2.5" IDE drive door and remove the screws to open the door. |
Remove 2.5" IDE hard drive from 44 pin IDE connector. Attach the CF Adapter with CF card inserted onto the 44 pin IDE connector with key pins matching. |
 |
note: the CF can be secured inside the hard drive cavity with a double face tape. A small piece of styrofoam block may also be shaped to fit and fill the extra space. This usually not necessary as the CF media is very light and the IDE connector makes a very tight connection that is highly unlikely to come loose. See following link for more detail.
|

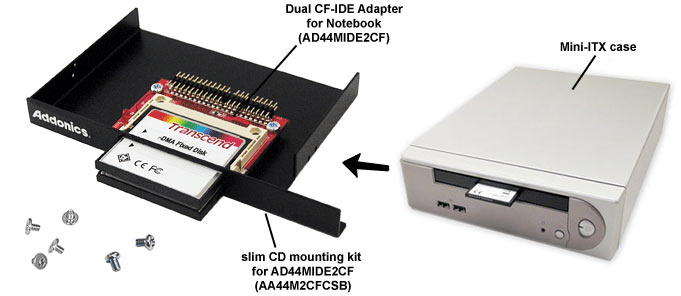

Optional slim CD mounting bracket for AD44MIDE2CF
|
 |
Key Features
- Enable Compact Flash (CF) to be used like ordinary 2.5" IDE hard drive
- Compatible with CFI/II, MicroDrive *
- Choice of single slot or dual slots CF adapter
- Drive access LED
- IDE interface
- Mini 44-pin IDE male connector (2.5" IDE hard drive connector)
- Bootable
- Compatible** with DOS, Windows 3.1, NT4, 98SE, Me, 2000, XP, Vista, Mac or Linux
- Supports DMA and Ultra DMA modes (only on flash media card with such features)
* CF Type II or MicroDrive can only be inserted into the CF1 position of the adapter. Click here for more information.
** Media must be in the device during boot up. Media is not hot swappable
Specifications
Interface:
|
mini 44-pin IDE male (2.5" IDE hard drive connector) |
| Supported media |
Compact Flash Type I/II, MicroDrive (see MD limitations FAQ) |
| Number of CF slots |
choice of single slot or dual slot |
| Maximum Read / Write Speed: |
Depends on the media |
| OS Support: |
DOS, Windows 3.1, N+5V from PC power supply
Built-in onboard regulator T, 98SE, Me, 2000, XP, Vista, Mac OS 8.6 or higher, Linux |
| Dimensions: |
- CF Hard Drive Adapter (W x D x H) - 56 x 6 x 59 mm with CF card attached
- Dual CF-IDE Adapter (W x D x H) - 56 x 10 x 60 mm with CF card attached
|
| Weight: |
~ 1 oz. |
| Power: |
depend on CF card
|
| Operating Temperature |
0 C to + 75 C |
| Operating Humidity: |
5% - 95% (non condensing) |
| Storage Temperature: |
-40 C to + 85 C |
| Storage Humidity: |
5% - 90% |
| Warranty: |
One Year |
