Addonics IDE to CompactFlash Adapter - Only Adapter (No Bracket)

IMG 1 of 2
No Longer Available
Part Number:
128792
(?) Brand:
Addonics Web Site
Manuf No:
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
, ADIDECFN, ADIDECF - N

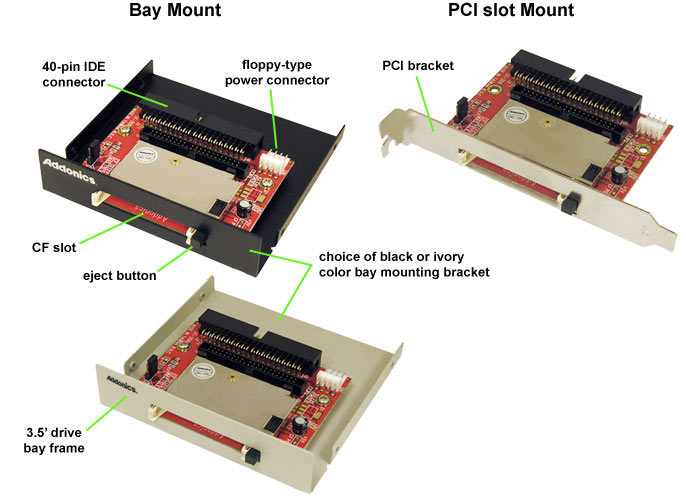

The Addonics IDE CF adapter is an ideal solution for industrial PC, embedded system or applications that required a simple and economical bootable CF slot. Designed to connect directly to the ubiquitous IDE port, the small form factor of this IDE CF adapter can be easily mounted inside a standard 3.5" drive bay, PCI slot or anywhere inside the system. Also available now is the SATA CF adapter for the fastest performance and more flexibility

Key Features

  • Compatible with CFI/II and Micro Drive *
  • IDE interface
  • Support master or slave setting
  • Mount in standard 3.5" drive bay (or 5 1/4" drive bay with optional bay converter, AAMK53)
  • Choice of black or ivory color bay bracket
  • Include PCI bracket to mount in full height PCI slot
  • Bootable
  • Supports DMA and Ultra DMA modes. A compatible flash media card will be required to use these modes.
  • Compatible** with DOS, Windows 3.1, NT4, 98SE, Me, 2000 and XP, Vista, Linux

* CF Type II or MicroDrive can only be inserted into the CF1 position of the adapter.
**Media must be in the device during boot up. Media is not hot swappable

Specifications

Interface:
 IDE
Supported media Compact Flash Type I/II, MicroDrive (see MD limitations FAQ)
Maximum Read / Write Speed: Depends on the media


OS Support: DOS, Windows 3.1, NT, 98SE, Me, 2000, XP, Vista, Mac OS 8.6 or higher, Linux
Dimensions: adapter: 3.18 x 2.44 x .35 in (81 x 62 x 9 mm)
3.5" bay frame: 4.02 x 3.82 x 1 in (102 x 97 x 25 mm)
Power: +5V from PC power supply
Storage Temperature: -20 C to + 60 C
Storage Humidity: 5 - 90%
Warranty: One Year
