All stock codes associated to this product
, ADIDESDB

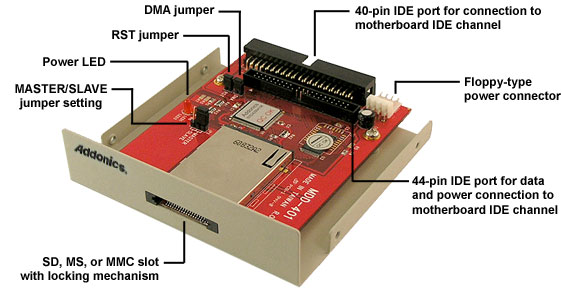

The Addonics IDE to SD Adapter is an ideal solution for industrial PC, embedded system or applications that required a simple and economical bootable SD slot. Designed to connect directly to the ubiquitous IDE port, the small form factor of this IDE SD Adapter can be easily mounted inside a standard 3.5" drive bay, a PCI slot or anywhere inside the system. This Adapter is capable of booting off compatible SD, MS, MS Pro Duo, MMC, and RS-MMC cards, or simply act as a flash media card reader.
Key Features
- Supports Secure Digital (SD), Memory Stick (MS), Multimedia Memory Card (MMC)
- SDHC compatible
- Supports both 40pin and 44pin IDE interface
- Supports DMA and Ultra DMA modes. A compatible flash media card will be required to use these modes.
- Choice of black or ivory color bay bracket

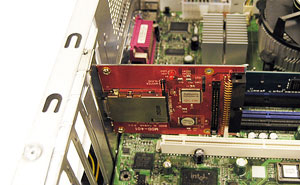

- Mount onto any standard height PCI bracket
- Mount onto standard 3.5" drive bay (or 5 1/4" drive bay with optional bay converter, AAMK53)

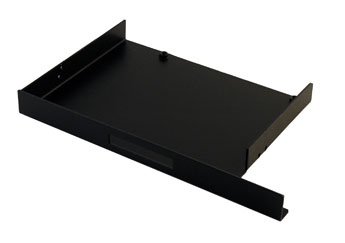

- Optional slim ATAPI mounting bracket (AAIDESDCSB)
- Powered from 4 pin floppy connector or 44pin IDE Port
- Bootable
- Jumpers onboard for Master or Slave setting
- Compatible* with DOS, Windows 3.1, NT4, 98SE, Me, 2000 and XP, Vista, and Linux with no drivers necessary
- RoHS compliant
*Media must be in the device during boot up. Media is not hot swappable
Specifications
Interface:
|
40-pin IDE, 44-pin IDE |
| Supported media |
SD, MS, MS Pro Duo, MMC, RS-MMC, xD |
| Maximum Read / Write Speed: |
Depends on the media |
| OS Support: |
DOS, Windows 3.1, NT, 98SE, Me, 2000, XP, Vista, Mac OS 8.6 or higher, Linux |
| Dimensions: |
Adapter: 4 x 3.2 x .5 in (102 x 81 x 13 mm)
3.5" bay frame: 4.02 x 3.82 x 1 in (102 x 97 x 25 mm) |
| Weight: |
5.7 oz. with bay mounting bracket |
| Power: |
+5V from PC power supply |
| Operating Temperature |
0 C to + 75 C |
| Operating Humidity: |
5% - 95% (non condensing) |
| Storage Temperature: |
-40 C to + 85 C |
| Storage Humidity: |
5 - 90% |
| Warranty: |
One Year |
