All stock codes associated to this product
PR1000ELCDRT2U, CP85204, 4712364141850

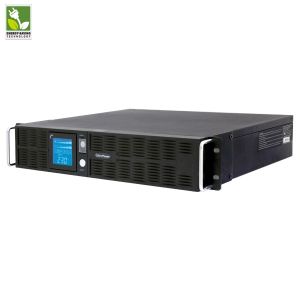

The professional Rack Mount LCD Series provides an advanced level of power protection to support mission-critical servers, telecom equipment, VOIP and internet working hardware. This series has both a Pure Sinewave waveform and Full Automatic Voltage Regulation(AVR) technology, which delivers a consistent and clean AC signal that protects connected equipment and prevents costly business interruptions. The multifunction LCD readout provides ready access to power/battery condition vitals, such as : Runtime, Load, Temperature, and much more. Bundled PowerPanel Business Edition Management Software monitors UPS status and can provide unattended shutdown of two serially connected servers. The patented GreenPower UPS advanced circuitry reduces UPS energy costs by up to 75% compared to competitive models. You will find 80% less heat dissipation as well. An optional SNMP/HTTP Remote Management adapter supports remote management and contol of the system through a standard web browser. The unit's unique convertible design allows for use in either a TOWER(T) or Rackmount(RM) form factor.
Features & Benefits
- GreenPower UPS Technology : Energy-Saving UPS
- Save upto 75% of electricity
- Pure Sine Wave output
- Automatic Voltage Regulator (AVR)
- PowerPanel Management software included
- Multiple outputs for multiple servers
- Multiple communication interfaces
- Programmable brownout and over voltage protection
- Microprocessor based full digital control
- EMI, RFI, Surge and lightning spike protection
- Phone/Fax/Modem and DSL/Network protection
- Scheduled shutdown
- Auto restart/Auto charge
- User-replaceable batteries
- SNMP/HTTP Adapter(optional)
- RM/T configuration
- Dual PC support
- Critical load outlets
- Metal housing
- Multifunction LCD readout
- Audible alarms
- Resettable Circuit Breaker
Packaging Contents
- UPS unit
- User manual
- PowerPanel Business Edition software CD
- Rack mount Brackets
- Phone line
- USB A+B type cable
- Emergency Power-Off Cable (gray)
- Serial Interface Cable (DB-9)
- Power Cord x 4
Specifications
| Model |
PR1000ELCDRT2U |
| Capacity (VA/Watts) |
1000VA / 700W |
| Input |
| Voltage Range |
160Vac - 290Vac |
| Frequency Range |
50Hz / 60 Hz +/- 3Hz(auto sensing) |
| Output |
| On Battery Output Voltage |
Pure Sine Wave at 230Vac +/- 5% |
| On Battery Output Frequency |
50Hz / 60 Hz +/- 0.1Hz |
| Transfer Time (Typical) |
4ms |
| Overload Protection |
Internal Current Limiting/Circuit Breaker |
| AVR |
Double Boost & Single Buck |
| Surge Protection and Filtering |
| Lightning/Surge Protection |
Yes |
| DSL/Phone/Fax/Moden protection |
RJ11/RJ45(One In/One Out) |
| Physical |
| Maximum Dimensions(mm) |
433 x 388 x 88 |
| Weight(kg) |
25.5 |
| Battery |
Sealed Maintenance Free Lead
Acid Battery |
12V 7AH x 4 |
| User Replaceable |
Yes |
| Typical Recharge Time |
6~8 Hours |
| Status Indication |
| Indicators |
Power On, Using Battery, AVR, Load Level, Battery Level |
| Audible Alarms |
On Battery, Low Battery, Overload |
| Communication |
| Power Management Software |
PowerPanel Business Edition |
| Management |
| Self-Test |
Yes |
| Auto-Charge/Auto-Restart |
Yes |
| COM Interface |
Yes |
| USB Interface |
Yes |
| SNMP/HTTP Capable |
Yes |
