ATEN 8-Port Video Splitter - 450Mhz, 2048x1536, 60Hz, Up to 65m

IMG 1 of 2
No Longer Available
Part Number:
134681
(?) Brand:
ATEN
Manuf No:
VS138A-AT-U
VS138AATU
Shipping Weight:
2 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video
All stock codes associated to this product
VS138AATU, VS138A-AT-U, ATVS138AATU, ATVS138A-AT-U, KVAVS138A, KVA-VS-138A, 47104237759611
8-Port Video Splitter
The VS138A Video Splitter is a boosting device that duplicates a video signal from one source to 8 output devices. Cascadable to three levels, the VS138A provides up to 512 video signals, in addition to extending transmission distance up to 65 m, making it excellent for public broadcast systems.
To transmit multiple, high-quality VGA, XGA, SVGA, UXGA, QXGA or multisync video signals over long distance without hassle, the VS138A is your best choice.

Applications include:
Financial - the remote display of stock market information
Education - the remote display of lectures and lessons to halls and classrooms
Business - the remote display of addresses to overflow rooms; video conferencing; and demos

Patent NO. : TW 152473 ,US 6119148 ,CN ZL 98218061.6 ,DE 29814640.1

Features
One video input to 8 video outputs
Supports up to 450 MHz bandwidth
Cascadable to 3 levels - provides up to 512 video signals
Long distance transmission - up to 65m
Superior video quality - up to 2048 x 1536
Supports VGA, XGA, SVGA, UXGA, QXGA and multi-sync monitors
Built-in 1.5 GHz amplifier to ensure video system maintain excellent fidelity
All-metal casing
Package Content
1x VS138A Video Splitter
1x Power Adapter
1x User Guide

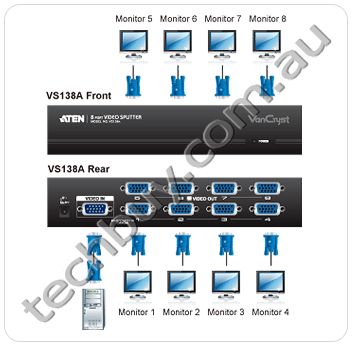

Diagram
+ View enlargement
Specification
Display Connections 8 / 512*
Connectors Video In 1 x HDB-15 Male (Blue)
Video Out 8 x HDB-15 Female (Blue)
Power 1 x DC Jack (Black)
LEDs Power 1 (Green)
Video Bandwidth 450 MHz
Resolution 2048 x 1536 @ 60Hz
Signal Type VGA, XGA, SVGA, UXGA, QXGA, Multisync, DDC2B**
Signal Range 65 m
Power Consumption DC5V, 2.25W
Environment Operating Temp. 0-50C
Storage Temp. -20-60C
Humidity 0-80% RH, Non-condensing
Physical Properties Housing Metal
Weight 0.69 kg
Dimensions (L x W x H) 20.00 x 7.50 x 4.50 cm
* Via three-level cascade
** Port 1 only
