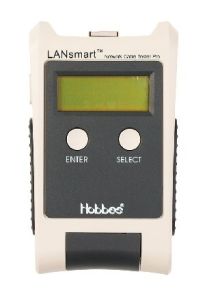

LANsmart TDR Wire Mapping TesterThe CABAC LANsmart TDR (Time Domain Reflectometer) is a handheld, digital multifunction Network Cable Tester and Cable LengthMeter. It incorporates a tone generator and auto negotiation Port Finder,with a LCD display of the results. It identifies most common cable wiringfaults including split pairs. It will accurately measure the cable lengthand locate problems from either end of the cable.Incorporates TDR (Time Domain Reflectometers) Technology tomeasure cable length up to 500mTests for shorts, opens, miss-wires, reversals, split pairs and shieldcontinuityIncorporates a Port Finder function to locate the correspondingsockets on the hub or switch, by making the light on the switch blinkMeasures the length of UTP and STP without remotesHas Velocity of Propagation adjustable calibration for non standardcables to increase measuring accuracyBuilt-in tone generator can be used with most commerciallyavailable probesSee the CABAC T180 or 256712F Tone Probe Tracers on page E16Tone generator sends to either all or selected pinsTest results displayed in pin-to-pin wire map formatCompatible with any twisted pair CAT3/4/5 and CAT6 cablesBattery operated, compact and easy to useWill measure lengths of cable spools

The CABAC LANsmart TDR (Time Domain Reflectometer) is a handheld, digital multifunction Network Cable Tester and Cable LengthMeter. It incorporates a tone generator and auto negotiation Port Finder,with a LCD display of the results. It identifies most common cable wiringfaults including split pairs. It will accurately measure the cable lengthand locate problems from either end of the cable.

Incorporates TDR (Time Domain Reflectometers) Technology tomeasure cable length up to 500m
Tests for shorts, opens, miss-wires, reversals, split pairs and shieldcontinuity
Incorporates a Port Finder function to locate the correspondingsockets on the hub or switch, by making the light on the switch blink
Measures the length of UTP and STP without remotes
Has Velocity of Propagation adjustable calibration for non standardcables to increase measuring accuracy
Built-in tone generator can be used with most commerciallyavailable probes
See the CABAC T180 or 256712F Tone Probe Tracers on page E16
Tone generator sends to either all or selected pins
Test results displayed in pin-to-pin wire map format
Compatible with any twisted pair CAT3/4/5 and CAT6 cables
Battery operated, compact and easy to use
Will measure lengths of cable spools

Specifications

Display	122 x 32 Dot matrix LCD (56 x 29mm)
Connector Type	RJ45 on Main and Remote
Accuracy	2m less than 10m 5% over 10m
Approx Range	500m
Split pair detection	1m
Tone Generator	1KHz
Operating Temp.	0 to 50 C
Weight Main unit	130g Remote 15g
Dimensions	82 x 138 x 32mm
Power	3 x 1.5V AAA Batteries
Battery Life	Approx 4 hours

Accessories
- One concealed remote
- One patch cable RJ45 to alligator clips
- One carrying case
