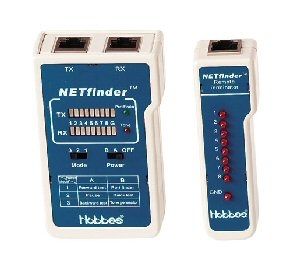

256553 | NetFinder Tester/Tone Generator/Port Finder - Up to 300m

NETfinder Tester, Tone Generator and Port FinderA perfect companion for network professionals, testing andtracing cables in one easy stepHas a built in tone generator for easy cable identificationAdvanced Port Finder function, which causes the light on theSwitch to blink, allowing you to trace a cable back to a SwitchCombines an all-in-one, Tester, Tone Generator and Port FinderTone tracer is not included, however the unit is compatible withmost cable tracers on the market see CABAC T180 or 256712FTone Probe Tracers on page E16Pin-to-pin LED indicationLocal loop-back test for open, shorts and miss-wiresAuto scan or manual step testing in forwards, backwardsand stop sequenceVideo cable testing possible using F connector accessoriesDO NOT USE ON A LIVE CIRCUIT

A perfect companion for network professionals, testing andtracing cables in one easy step
Has a built in tone generator for easy cable identification
Advanced Port Finder function, which causes the light on theSwitch to blink, allowing you to trace a cable back to a Switch
Combines an all-in-one, Tester, Tone Generator and Port Finder
Tone tracer is not included, however the unit is compatible withmost cable tracers on the market see CABAC T180 or 256712FTone Probe Tracers on page E16
Pin-to-pin LED indication
Local loop-back test for open, shorts and miss-wires
Auto scan or manual step testing in forwards, backwardsand stop sequence
Video cable testing possible using F connector accessories
DO NOT USE ON A LIVE CIRCUIT

256553

Specifications

Battery	9V life approx 6 hours
Max. Test Distance	300m
Tone Frequency	1KHz
Operating Temp.	0 C to 50 C
Power	One by 9V Battery (not included)

Accessories
- Two by RJ45 to F Male connector cables
- One F Female to Female adaptor
- Two RJ45 8p to 6p adaptors
- 2 by RJ45 to RJ45 flat patch leads
- Supplied with a carrying pouch
